Accept payments with Apple Pay

2025-11-20 00:37

Through the Apple Pay service, buyers can make payments using credit or debit cards stored in their Apple accounts. With Antom Checkout Page (CKP), you do not need to integrate the Apple Pay SDK separately. Checkout Page will automatically load Apple Pay services for you and can be configured to support Apple Pay as an express payment method.

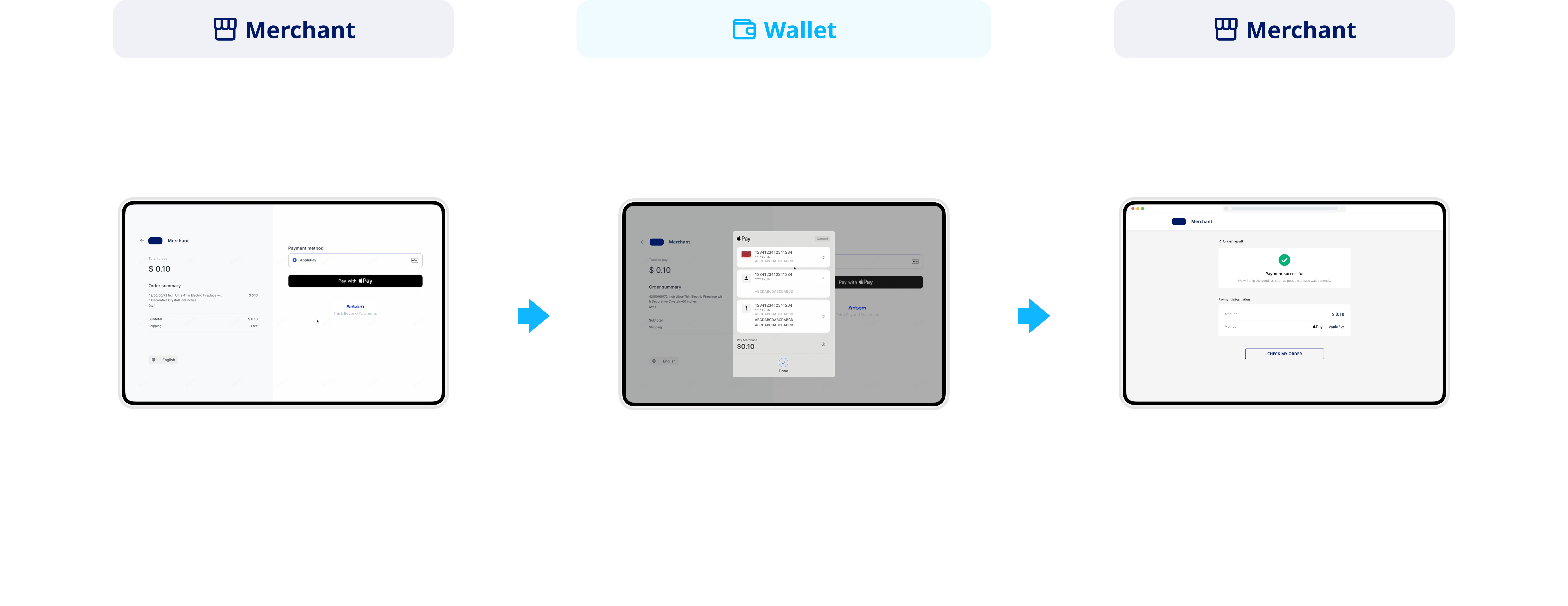

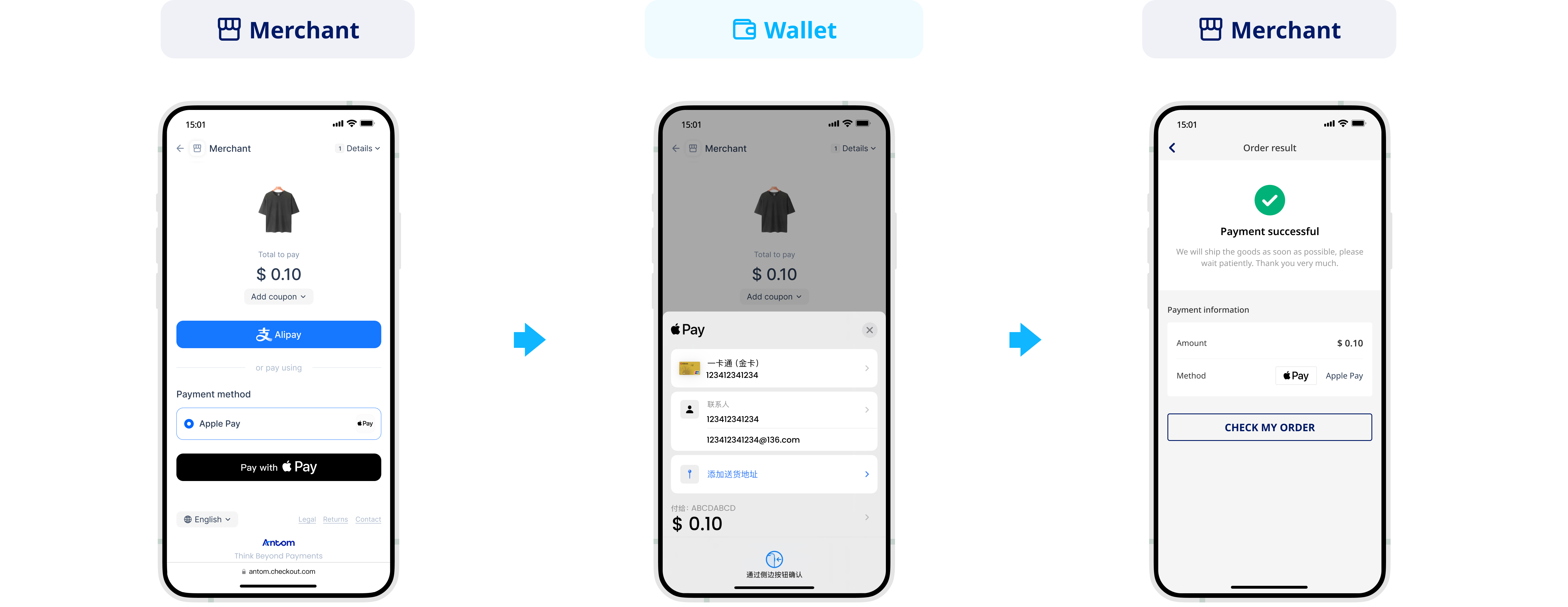

User experience

Web

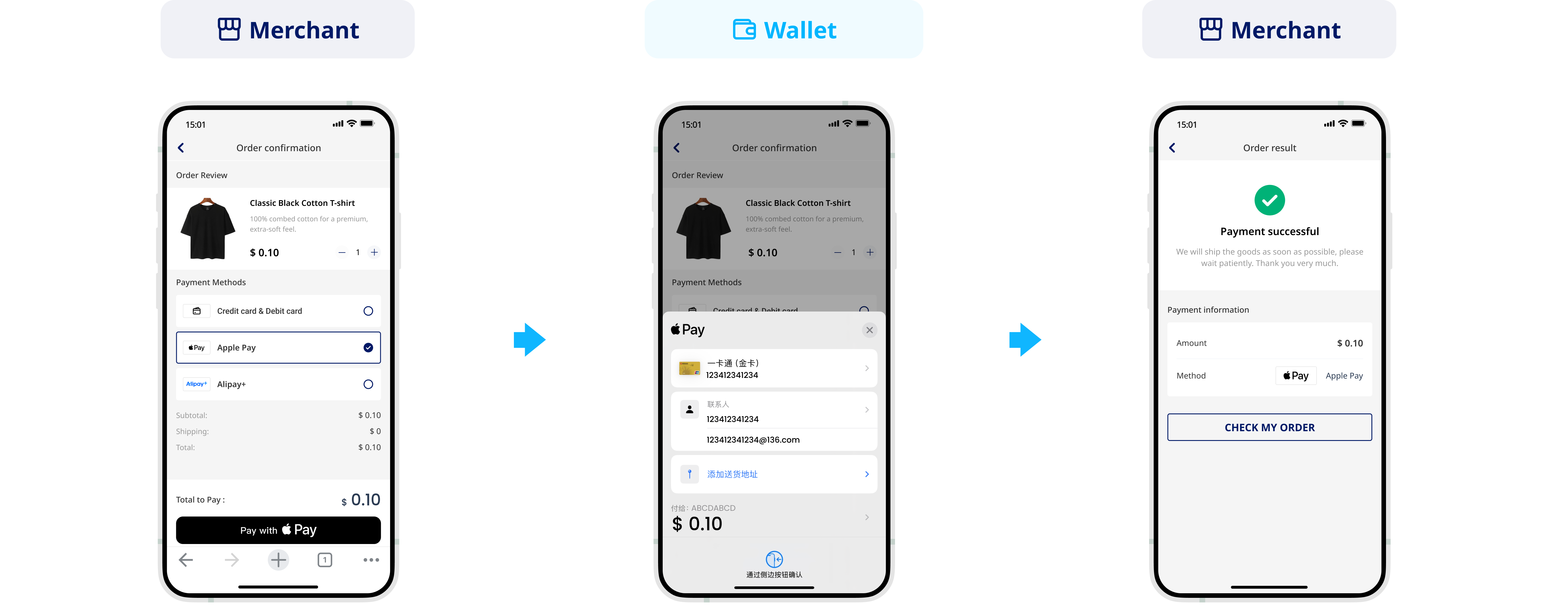

Mobile

Integration preparations

Before you start integrating, read the Integration Guide and API Overview documents to understand the integration steps of the server-side API and the precautions for calling the API. Furthermore, ensure that the following prerequisites are met:

Obtain a client ID
Complete the key configuration
Complete the configuration of paymentNotifyUrl to receive the asynchronous notification
Integrate the server-side SDK package, install the server-side library, and initialize a request instance. For more details, refer to Server-side SDKs.

Integration steps

Follow these steps to start the integration:

Create a payment session
Redirect to Antom Checkout Page
Obtain the payment result
Initiate capture

Step 1: Create a payment session Server-side

You can call the createPaymentSession (Checkout Payment) API and pass in the order information to create a payment session and redirect to the Antom Checkout Page.

The key parameters of the request are as follows:

Parameter type	Parameter name	Required	Description
Base parameters	productCode	Yes	The value of this parameter in this scenario is fixed as `CASHIER_PAYMENT`.
	productScene	Yes	The value of this parameter in this scenario is fixed as `CHECKOUT_PAYMENT`.
	paymentRequestId	Yes	The unique ID assigned by you to identify a payment request.
	paymentAmount	Yes	The payment amount that you requests to receive in the order currency.
	paymentRedirectUrl	Yes	The merchant page URL that the buyer is redirected to after the payment is completed.
	paymentNotifyUrl	No	The URL that is used to receive the payment result notification. You can also set the URL to receive the result notification on Antom Dashboard.
	settlementStrategy	No	The settlement strategy for the payment request. Specify the settlementCurrency parameter in the API if you signed up for multiple settlement currencies.
	locale	No	Language tag specified for the Checkout Page. If this parameter is empty or set to automatic, the default language setting of the browser will be used, which is usually English.
	paymentFactor.isAuthorization	No	Indicates whether the payment scenario requires authorization. Valid values are: `false`: Default value. Indicates that the payment scenario is a regular payment without authorization. `true`: Indicates that the payment scenario requires authorization. Note: For the Checkout Page (CKP) integration, this parameter is not required or can be left empty.
Order parameters	order.orderAmount	Yes	Order amount.
	order.referenceOrderId	Yes	Order ID.
	order.orderDescription	Yes	Order description.
	order.buyer	Yes	The buyer information of the merchant side. At least one of the following information must be provided: order.buyer.referenceBuyerId order.buyer.buyerPhoneNo order.buyer.buyerEmail Note: If buyer information is not passed, selecting Apple Pay and submitting the payment will trigger a page error and cause the payment process to fail.
Apple Pay preference parameters	availablePaymentMethod.paymentMethodMetaData.applePayConfiguration	No	In the Checkout Page scenario, it is recommended to use the default value for this parameter. Note: You can specify Apple Pay as the only payment method in the checkout page by setting this parameter. For more details, refer to Specify a payment method.
Specify Apple Pay as an express payment method	availablePaymentMethod.paymentMethodTypeList.expressCheckout	No	You can specify Apple Pay as an express payment method either by setting this parameter to `true` or via the Antom Dashboard.

The above parameters are the basic parameters for creating a payment session. For complete and additional requirements for specific payment methods, please refer to createPaymentSession (Checkout Payment).

The following sample code shows how to call the createPaymentSession (Checkout Payment) API:

copy
    /**
     * show how to card payment Session(need to finish payment by Antom SDK)
     */
    public static void executePaymentSessionCreateWithApplePay() {

        AlipayPaymentSessionRequest alipayPaymentSessionRequest = new AlipayPaymentSessionRequest();
        alipayPaymentSessionRequest.setProductCode(ProductCodeType.CASHIER_PAYMENT);
        alipayPaymentSessionRequest.setProductScene("CHECKOUT_PAYMENT");
        // replace with your paymentRequestId
        String paymentRequestId = UUID.randomUUID().toString();
        alipayPaymentSessionRequest.setPaymentRequestId(paymentRequestId);

        // set amount
        Amount amount = Amount.builder().value("4200").currency("SGD").build();
        alipayPaymentSessionRequest.setPaymentAmount(amount);

        // AvailablePaymentMethod
        AvailablePaymentMethod available = new AvailablePaymentMethod();
        List<PaymentMethodTypeItem> list = new ArrayList<>();
        PaymentMethodTypeItem item = new PaymentMethodTypeItem();
        item.setPaymentMethodType("APPLEPAY");
        item.setPaymentMethodOrder(0);
        item.setExpressCheckout(true);
        list.add(item);
        available.setPaymentMethodTypeList(list);
        alipayPaymentSessionRequest.setAvailablePaymentMethod(available);

        // replace with your orderId
        String orderId = UUID.randomUUID().toString();

        // set buyer info
        Buyer buyer = Buyer.builder().referenceBuyerId("yourBuyerId").build();

        // set order info
        Order order = Order.builder().referenceOrderId(orderId)
                .orderDescription("antom testing order").orderAmount(amount).buyer(buyer).build();
        alipayPaymentSessionRequest.setOrder(order);

        // replace with your notify url
        alipayPaymentSessionRequest.setPaymentNotifyUrl("http://www.yourNotifyUrl.com");

        // replace with your redirect url
        alipayPaymentSessionRequest.setPaymentRedirectUrl("http://www.yourRedirectUrl.com");

        // do payment
        AlipayPaymentSessionResponse alipayPaymentSessionResponse = null;
        try {
            alipayPaymentSessionResponse = CLIENT.execute(alipayPaymentSessionRequest);
            System.out.println(JSONObject.toJSON(alipayPaymentSessionResponse));
        } catch (AlipayApiException e) {
            String errorMsg = e.getMessage();
            // handle error condition
        }
    }

The following shows the sample code of a request:

copy
{
  "order": {
    "buyer": {
      "referenceBuyerId": "yourBuyerId"
    },
    "goods": [
      {
        "goodsBrand": "Antom Brand",
        "goodsCategory": "outdoor goods/bag",
        "goodsImageUrl": "https://mdn.alipayobjects.com/portal_pdqp4x/afts/file/A*H8M9RrxlArAAAAAAAAAAAAAAAQAAAQ",
        "goodsName": "Classic Woman Bag",
        "goodsQuantity": "1",
        "goodsSkuName": "Black",
        "goodsUnitAmount": {
          "currency": "SGD",
          "value": "6000"
        },
        "goodsUrl": "https://yourGoodsUrl",
        "referenceGoodsId": "yourGoodsId"
      }
    ],
    "orderAmount": {
      "currency": "SGD",
      "value": "6000"
    },
    "orderDescription": "antom ckp testing order",
    "referenceOrderId": "c3df9b82-ff67-424b-880b-06c3615b46ea"
  },
  "paymentAmount": {
    "currency": "SGD",
    "value": "6000"
  },
  "availablePaymentMethod": {
    "paymentMethodTypeList": [
      {
        "paymentMethodType": "APPLEPAY",
        "expressCheckout": true,
        "paymentMethodOrder": 0
      }
    ]
  },
  "paymentNotifyUrl": "http://www.yourNotifyUrl.com/payment/receiveNotify",
  "paymentRedirectUrl": "http://localhost:8080/index.html?paymentRequestId=597795b7-c812-4132-bd7d-c55914eefdcb",
  "paymentRequestId": "597795b7-c812-4132-bd7d-c55914eefdcb",
  "productCode": "CASHIER_PAYMENT",
  "productScene": "CHECKOUT_PAYMENT"
}

The following shows the sample code of a response, which contains the following parameters:

paymentSessionData: The encrypted payment session data. Pass the data to your front end.
paymentSessionExpiryTime: The specific date and time after which the payment session will expire.
normalUrl: The URL used to redirect to the Checkout Page.

copy
{
    "normalUrl": "https://checkout.antom.com/checkout-page/pages/payment/index.html?sessionData=1iwX2rH5kXnUGT5372d0kHD7PwcgPmRSMgAsvKs8hqRkqobbtWbep59PU2eO5w72h%2B%2XXXX",
    "paymentSessionData": "1iwX2rH5kXnUGT5372d0kHD7PwcgPmRSMgAsvKs8hqRkqobbtWbep59PU2eO5w72h+/c278B+P+nDVNzrQySQQ==&&SG&&188&&eyJleHRlbmRJbmZvIjoie1wiT1BFTl9NVUxUSXXXX",
    "paymentSessionExpiryTime": "2025-03-19T16:21:06+08:00",
    "paymentSessionId": "1iwX2rH5kXnUGT5372d0kHD7PwcgPmRSMgAsvKs8hqSln4WiVZXXXX",
    "result": {
        "resultCode": "SUCCESS",
        "resultMessage": "success.",
        "resultStatus": "S"
    }
}

The table shows the possible values that the result.resultStatus parameter in the request message may return. Please handle the result according to the guidances:

result.resultStatus	Message	Further actions
`S`	Indicates that payment session creation succeeded.	Obtain the Antom Checkout Page URL (normalUrl) and return to the merchant's front end. For detailed steps, please refer to Step 2.
`U`	Indicates that payment session creation failed for unknown reasons.	Please use a new paymentRequestId and call the API again to resolve the issue. Please contact Antom technical support if the problem persists.
`F`	Indicates that the payment session creation failed.	Please check and verify whether the current API required request parameters (including header parameters and body parameters) are correctly passed and valid.

Note: If you did not receive a response message, it might be due to a network timeout. Please use a new paymentRequestId and call the API again to resolve the issue.

Step 2: Redirect to Antom Checkout Page Client-side

After the merchant server obtains normalUrl and passes it to front end, it will redirect from the merchant front end to the Antom Checkout Page. For details, please refer to Hosted mode.

Step 3: Obtain the payment result Server-side

After the buyer completes payment or the payment times out, you can obtain the payment result either by receiving asynchronous notifications from Antom or by proactively querying the result. For detailed steps, refer to Process asynchronous notifications and Inquire paymnets.

Step 4: Capture Server-side

Antom provides both automatic and manual capture methods. You can choose based on your business needs. After initiating capture, you can obtain the result via asynchronous notification or active inquiry. For specific operations, refer to Capture.

After payments

After completing the payment, you can perform the following actions:

Refund Server-side

To learn about Antom refund rules and how to initiate a refund for a successful transaction, see Refund for more information.

Dispute Server-side

When a buyer chooses to pay with a card, a dispute may occur. To learn more, see Dispute.

Reconciliation Server-side

After the transaction is completed, use the financial reports provided by Antom for reconciliation. For more information on how to reconcile and the settlement rules of Antom, please refer to Reconciliation.

Additional content

Card payment features

Card payment features also apply to Apple Pay. The following table outlines the support status of these features for Apple Pay:

Type	Supported	Conditions
Antom Tokenization	Conditional	Not supported in CIT (Cardholder-Initiated Transaction) scenarios. It is recommended to store cards via Apple accounts. Supported in MIT (Merchant-Initiated Transaction) scenarios.
COF	Conditional	Only supported in MIT (Merchant-Initiated Transaction) scenarios.
3D Secure 2	Yes	After completing 3D Secure 2 authentication, Apple Pay passes the encrypted transaction cryptogram and ECI (E-Commerce Indicator) to Antom. Antom processes this authentication data following standard third-party card network procedures. For details, refer to Apple Developer: Payment token format reference. As a result, no additional 3DS authentication flow will be triggered by the payment method within Checkout Page, ensuring a seamless user experience. It is recommended to use the default values for the is3DSAuthentication and enableAuthenticationUpgrade parameters when initiating payment requests.
Antom 3DS Retry	Yes	None
MIT	Yes	None
Installments	Yes	None

Specify a payment method

You can specify payment methods on Antom Dashboard through Payments > Checkout page > Payment methods. You can also pass the parameters in the createPaymentSession (Checkout Payment) API to specify the display of payment methods on Checkout Page, the order of the payment method list, and the display of express payments.

Note: If you pass parameters through the API, the API values take priority.

This feature offers you the following benefits:

Filter local payment methods based on your business region.
Sort your preferred payment methods.
Display the mainstream quick payments, such as Alipay, Apple Pay, and Google Pay.

To specify Apple Pay as the only payment method, pass the following parameters in the availablePaymentMethod parameter of the createPaymentSession (Checkout Payment) API:

The following is a sample code for specifying Apple Pay as the only payment method:

copy
{
  "availablePaymentMethod": {
    "paymentMethodTypeList": [
      {
        "paymentMethodType": "APPLEPAY",
        "expressCheckout": true,
        "paymentMethodOrder": "0"
      }
    ]
  }
}
