Antom Checkout Page (CKP) is a user-friendly, low-code payment solution that simplifies global transactions. Supporting a wide range of payment methods, CKP meets the needs of different markets and business scenarios. With minimal setup, you can quickly create a professional, feature-rich checkout page that offers buyers a smooth and convenient payment experience while significantly improving payment integration efficiency and driving business growth.

This guide shows you how to integrate CKP through an SDK, where the Antom Checkout Page is embedded into your product purchase page for buyers to make payment.

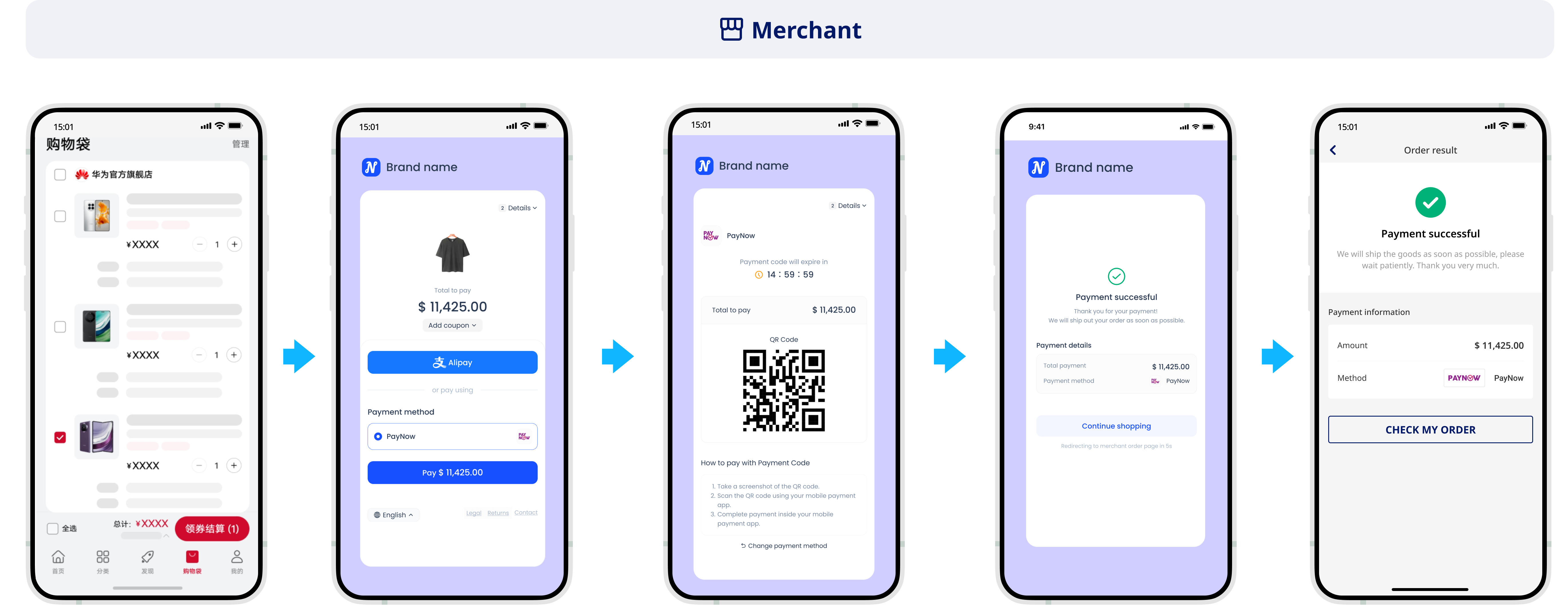

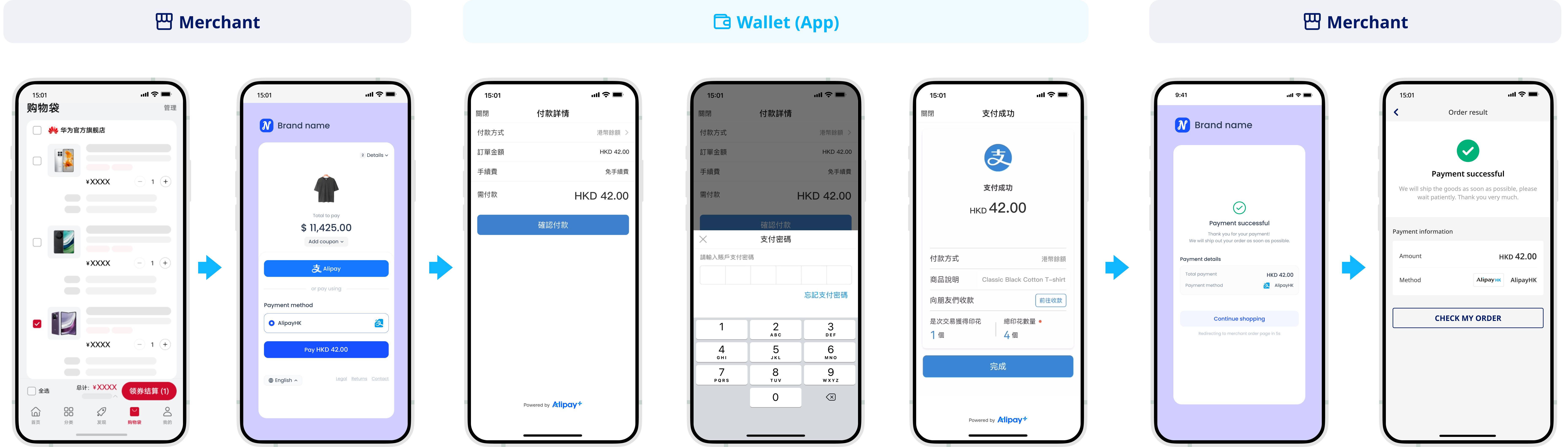

User experience

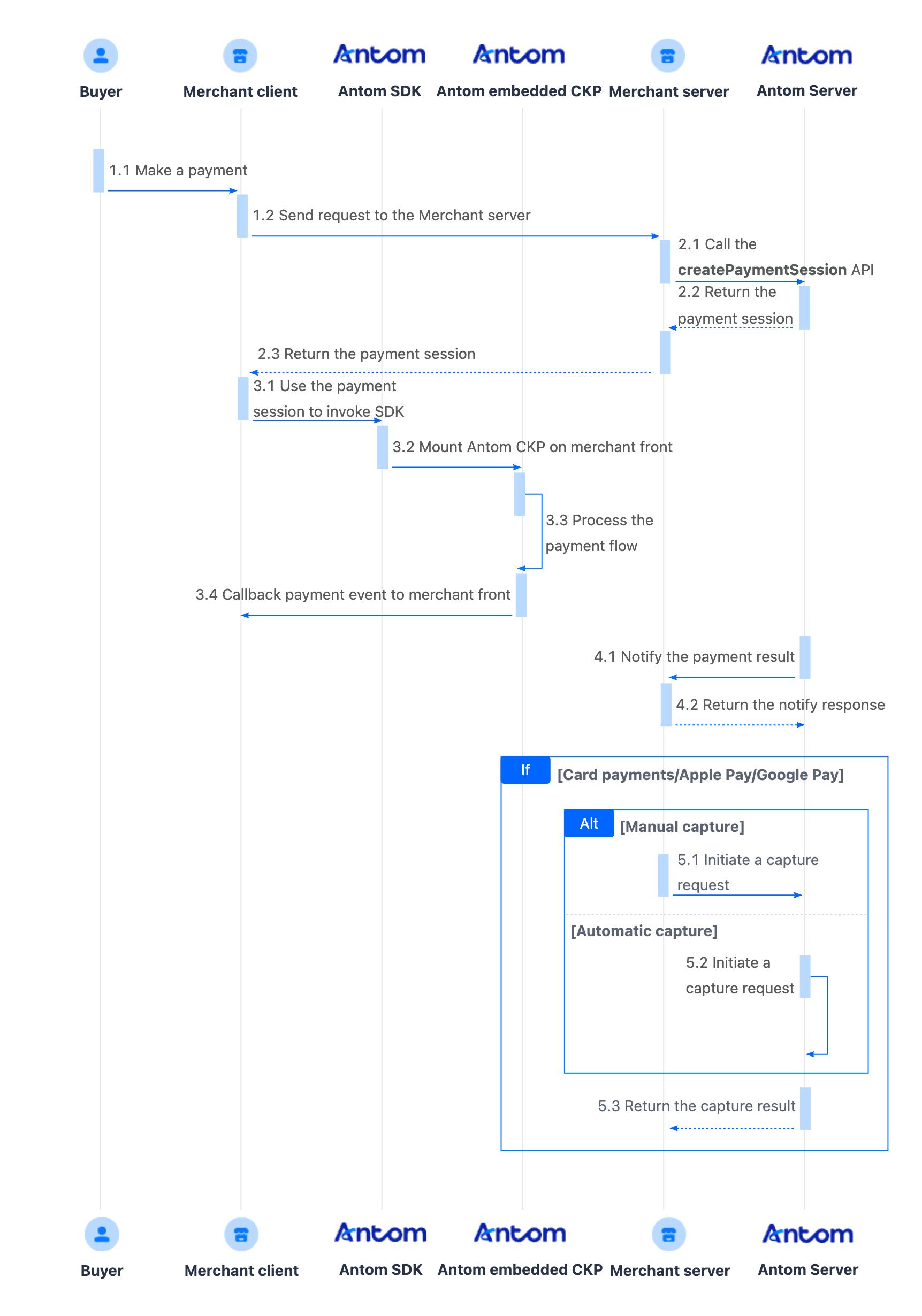

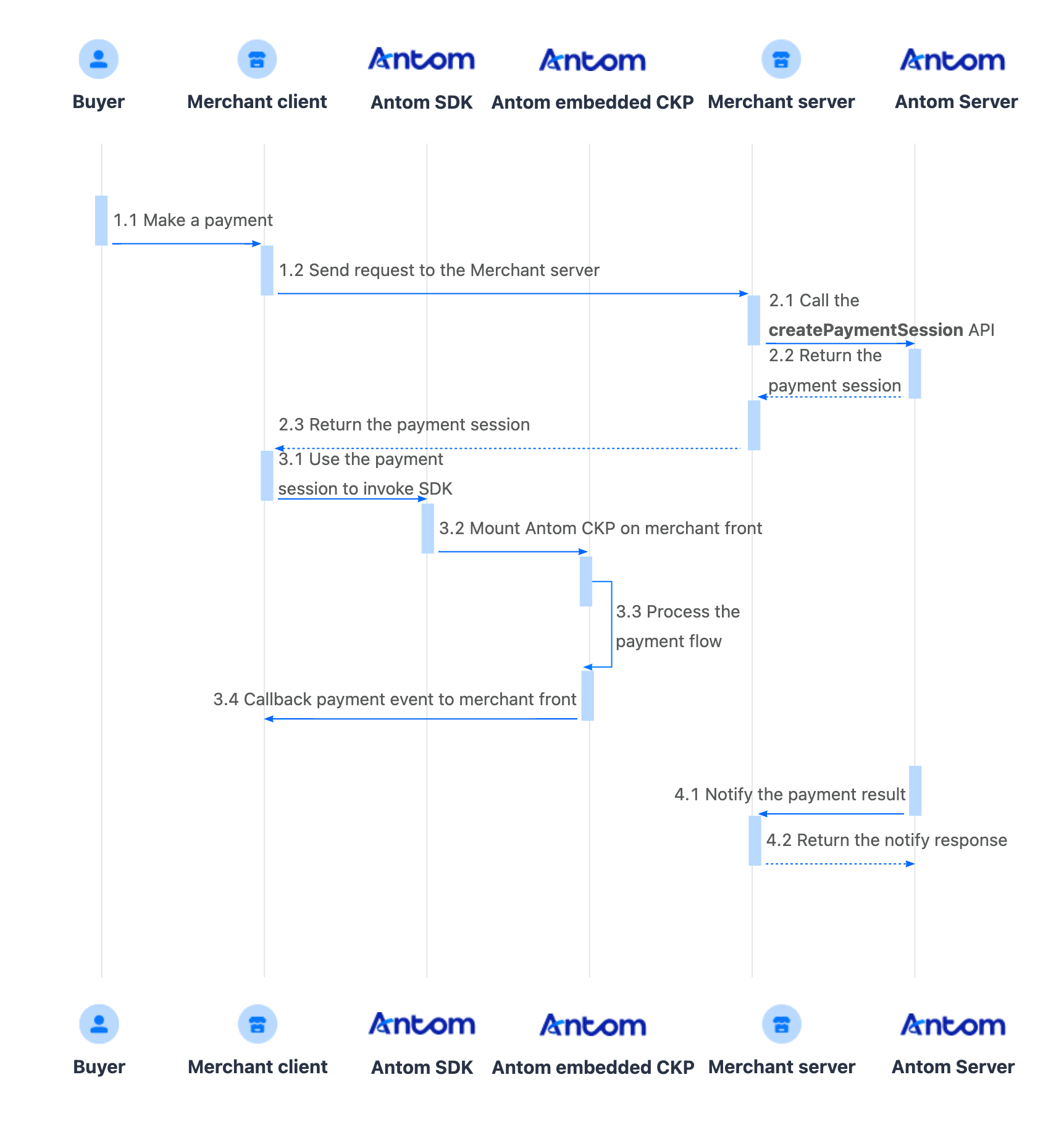

Payment flow

The following process shows how to integrate the embedded CKP:

1. The buyer places an order in the merchant side.
2. Create a payment session request.

When a buyer places an order on the merchant side, you need to call the createPaymentSession (Checkout Payment) API to obtain the paymentSessionData that calls the SDK.

3. Invoke the client SDK.

The merchant uses the paymentSessionData to call the SDK embedded Checkout Page component in the merchant web page, and then the buyer submits the payment in the Checkout Page component, and the SDK will process the payment process.

4. Get the payment result.

You can retrieve payment results through asynchronous notifications. Configure the paymentNotifyUrl parameter in the createPaymentSession (Checkout Payment) API to specify the URL to receive asynchronous notifications. Antom sends an asynchronous notification through the notifyPayment API when a payment request succeeds or expires.

Integration steps

Follow these steps to start the integration:

1. Create a payment session
2. Embed the Antom Checkout Page
3. Process asynchronous notifications

Step 1: Create a payment session Server-side

Buyers can select a payment method provided by Antom when making payments. For payment method configurations, see Specify a payment method. When the buyer makes a payment, you need to collect key information, such as the payment request ID, order details, payment redirect URL, and payment notification URL. Call the createPaymentSession (Checkout Payment) API to create a payment session and redirect to the Antom Checkout Page.

1. Install an API library

You can find the latest version on GitHub.

<dependency>
   <groupId>com.alipay.global.sdk</groupId>
   <artifactId>global-open-sdk-java</artifactId>
   <version>{latest_version}</version>
</dependency>

2. Initialize the request instance

Create a singleton resource to make a request to Antom.

import com.alipay.global.api.AlipayClient;
import com.alipay.global.api.DefaultAlipayClient;
import com.alipay.global.api.model.constants.EndPointConstants;

public class Sample {
    public static final String        CLIENT_ID            = "";
    public static final String        ANTOM_PUBLIC_KEY     = "";
    public static final String        MERCHANT_PRIVATE_KEY = "";

    private final static AlipayClient CLIENT               = new DefaultAlipayClient(
            EndPointConstants.SG, MERCHANT_PRIVATE_KEY, ANTOM_PUBLIC_KEY, CLIENT_ID);

}

3. Call the createPaymentSession API

The following sample code shows how to call the createPaymentSession (Checkout Payment) API:

public static void createPaymentSession() {
    AlipayPaymentSessionRequest alipayPaymentSessionRequest = new AlipayPaymentSessionRequest();
    alipayPaymentSessionRequest.setProductCode(ProductCodeType.CASHIER_PAYMENT);

    // replace with your paymentRequestId
    String paymentRequestId = UUID.randomUUID().toString();
    alipayPaymentSessionRequest.setPaymentRequestId(paymentRequestId);

    // set amount
    Amount amount = Amount.builder().currency("SGD").value("4200").build();
    alipayPaymentSessionRequest.setPaymentAmount(amount);

    // set paymentMethod
    PaymentMethod paymentMethod = PaymentMethod.builder().paymentMethodType("SHOPEEPAY_SG").build();
    alipayPaymentSessionRequest.setPaymentMethod(paymentMethod);

    // replace with your orderId
    String orderId = UUID.randomUUID().toString();

    // set buyer info
    Buyer buyer = Buyer.builder().referenceBuyerId("yourBuyerId").build();

    // set order info
    Order order = Order.builder().referenceOrderId(orderId)
        .orderDescription("antom testing order").orderAmount(amount).buyer(buyer).build();
    alipayPaymentSessionRequest.setOrder(order);

    // replace with your notify url
    alipayPaymentSessionRequest.setPaymentNotifyUrl("https://www.yourNotifyUrl.com");

    // replace with your redirect url
    alipayPaymentSessionRequest.setPaymentRedirectUrl("https://www.yourMerchantWeb.com");

    AlipayPaymentSessionResponse alipayPaymentSessionResponse = null;
    try {
        alipayPaymentSessionResponse = CLIENT.execute(alipayPaymentSessionRequest);
    } catch (AlipayApiException e) {
        String errorMsg = e.getMessage();
        // handle error condition
    }
}

4. Create a payment session

If your payment methods include card payments, buyer information from the merchant side must be provided in the payment session parameters. For details, please refer to Card payments.

Creating a payment session includes the following parameters:

The above parameters are the basic parameters for creating a payment session. For complete and additional requirements for specific payment methods, please refer to createPaymentSession (Checkout Payment).

The following shows the sample code of a request:

{
  "order": {
    "buyer": {
      "referenceBuyerId": "yourBuyerId"
    },
    "goods": [
      {
        "goodsBrand": "Antom Brand",
        "goodsCategory": "outdoor goods/bag",
        "goodsImageUrl": "https://mdn.alipayobjects.com/portal_pdqp4x/afts/file/A*H8M9RrxlArAAAAAAAAAAAAAAAQAAAQ",
        "goodsName": "Classic Woman Bag",
        "goodsQuantity": "1",
        "goodsSkuName": "Black",
        "goodsUnitAmount": {
          "currency": "SGD",
          "value": "6000"
        },
        "goodsUrl": "https://yourGoodsUrl",
        "referenceGoodsId": "yourGoodsId"
      }
    ],
    "orderAmount": {
      "currency": "SGD",
      "value": "6000"
    },
    "orderDescription": "antom ckp testing order",
    "referenceOrderId": "c3df9b82-ff67-424b-880b-06c3615b46ea"
  },
  "paymentAmount": {
    "currency": "SGD",
    "value": "6000"
  },
  "paymentNotifyUrl": "http://www.yourNotifyUrl.com/payment/receiveNotify",
  "paymentRedirectUrl": "http://localhost:8080/index.html?paymentRequestId=597795b7-c812-4132-bd7d-c55914eefdcb",
  "paymentRequestId": "597795b7-c812-4132-bd7d-c55914eefdcb",
  "productCode": "CASHIER_PAYMENT",
  "productScene": "CHECKOUT_PAYMENT"
}

The following shows the sample code of a response, which contains the following parameters:

• paymentSessionData: The encrypted payment session data. Pass the data to your front end.
• paymentSessionExpiryTime: The specific date and time after which the payment session will expire.
• normalUrl: The URL used to redirect to the Checkout Page.

{
    "normalUrl": "https://checkout.antom.com/checkout-page/pages/payment/index.html?sessionData=1iwX2rH5kXnUGT5372d0kHD7PwcgPmRSMgAsvKs8hqRkqobbtWbep59PU2eO5w72h%2B%2XXXX",
    "paymentSessionData": "1iwX2rH5kXnUGT5372d0kHD7PwcgPmRSMgAsvKs8hqRkqobbtWbep59PU2eO5w72h+/c278B+P+nDVNzrQySQQ==&&SG&&188&&eyJleHRlbmRJbmZvIjoie1wiT1BFTl9NVUxUSXXXX",
    "paymentSessionExpiryTime": "2025-03-19T16:21:06+08:00",
    "paymentSessionId": "1iwX2rH5kXnUGT5372d0kHD7PwcgPmRSMgAsvKs8hqSln4WiVZXXXX",
    "result": {
        "resultCode": "SUCCESS",
        "resultMessage": "success.",
        "resultStatus": "S"
    }
}

The table shows the possible values that the result.resultStatus field in the request message may return. Please handle the result according to the guidances:

Note: If you did not receive a response message, it might be due to a network timeout. Please change the paymentRequestId and call the API again to resolve the issue.

Step 2: Embed Antom Checkout Page Client-side

The Antom SDK is a component used for handling payment processes. You initiate the SDK by creating a payment session to collect information and switch between apps based on the payment method specified in the createPaymentSession (Checkout Payment) API.

1. Install

Before beginning the integration, make sure that you have completed the following environment preparations:

• Properly handle compatibility issues: Provide corresponding polyfills for Internet Explorer and other old browser versions. We recommend that you use babel-preset-env to address browser compatibility issues when you build a project.
• Use the following recommended browser versions:

• For mobile browsers:

• iOS 11 and later.
• Android 5.0 and later.

• For computer browsers, use the following recommended versions:

To integrate the SDK package, refer to Integrate the SDK Package for Web/WAP.

2. Instantiate the SDK

Use AMSCheckoutPage to create an SDK instance. The configuration object includes the following parameters:

The following sample code shows how to instantiate the SDK:

npm：
import { AMSCheckoutPage } from '@alipay/ams-checkout' // Package manager
const checkoutApp = new AMSCheckoutPage({
  environment: "sandbox",
  onEventCallback: ({code, message}) => {},
});
cdn：
// Under CDN method: Use window.AMSCheckoutPage to instantiate
const checkoutApp = new AMSCheckoutPage({
  environment: "sandbox",
  onEventCallback: ({code, message}) => {},
});

3. Invoke the SDK

When the buyer places an order and redirects to the Antom Checkout Page, you need to create the SDK and instantiate it with a payment session.

Create a DOM node

On your checkout page, create a DOM node to embed the Antom Checkout Page component.

<div class="content">
  <div class="checkout-container" id="ckp-embed-wrapper"></div>
</div>

Create the component

Use the mountComponent function in the instance object to create the Antom Checkout Page component:

async function create(sessionData) {
  await checkoutApp.mountComponent({
    sessionData: sessionData,
  },'#ckp-embed-wrapper');
}

Destroy the component

Call the unmount method to free SDK component resources in the following situations:

• When the buyer switches views away from the checkout page, free the component resources created in createPaymentSession (Checkout Payment).
• When the buyer initiates multiple payments, free the previously created component resources in createPaymentSession (Checkout Payment).
• Free the component resources after obtaining the final payment result codes.

// Free SDK component resources
checkoutApp.unmount();

4. Process payment results

The payment result will be returned by onEventCallback function. You need to customize the processing flow you want for each payment result through the data in the result of onEventCallback. The payment result here is only for front-end display, and the final order status is subject to the server side.

The following are the possible event codes of the payment result returned by onEventCallback:

The following sample code shows how to process onEventCallback:

function onEventCallback({ code, result }) {
  switch (code) {
    case 'SDK_PAYMENT_SUCCESSFUL':
      // Payment was successful. Redirect buyers to the payment result page.
      break;
    case 'SDK_PAYMENT_FAIL':
      console.log('Check the payment result data', result);
      // Payment failed. Guide buyers to retry the payment based on the provided information.
      break;
    case 'SDK_PAYMENT_CANCEL':
      // Guide buyers to retry the payment.
      break;
    case 'SDK_PAYMENT_CLICK_BACK_TO_MERCHANT':
      // User click the Back to merchant button. Redirect buyers to the payment result page.
      break;
    default:
      break;
  }
}

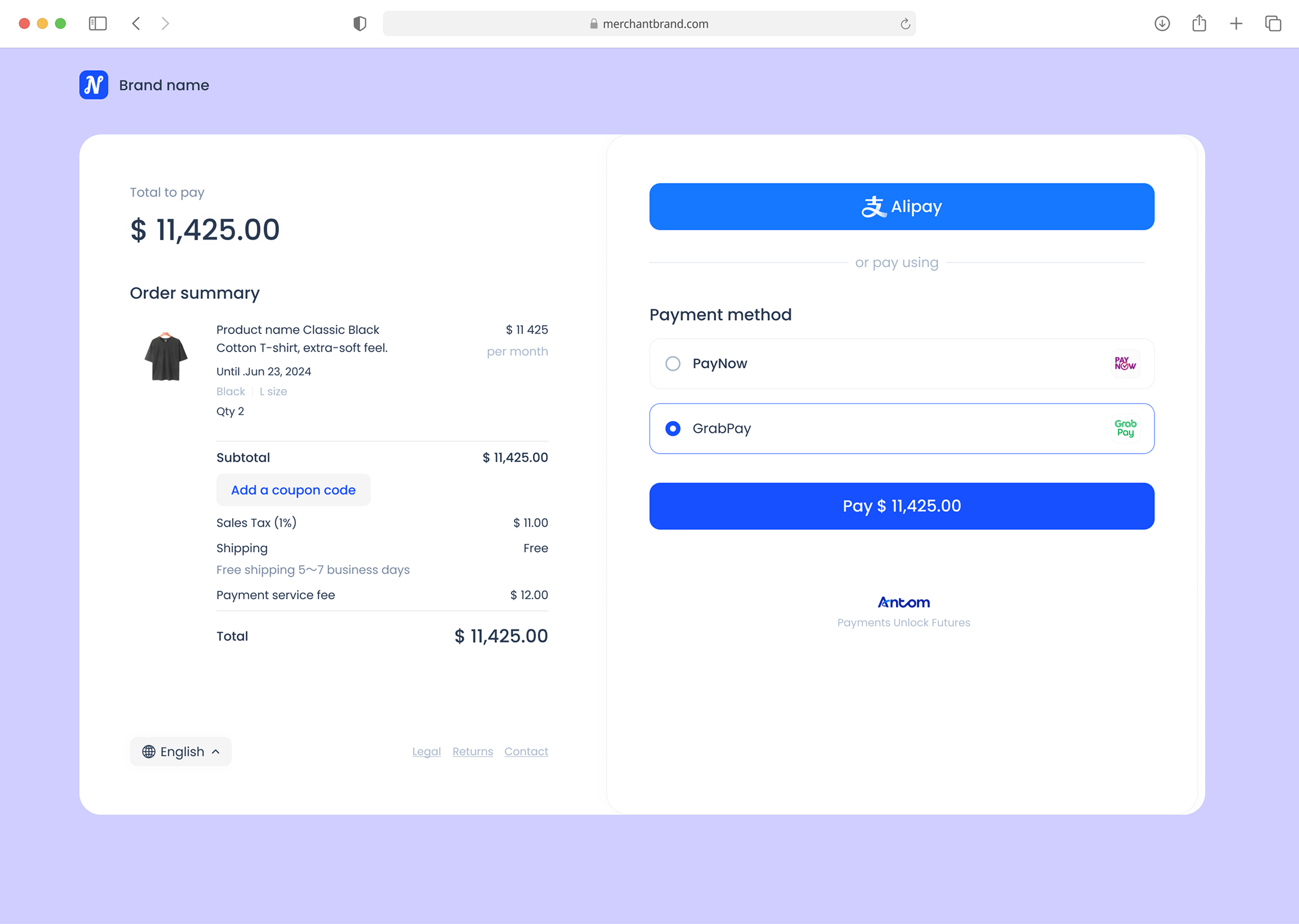

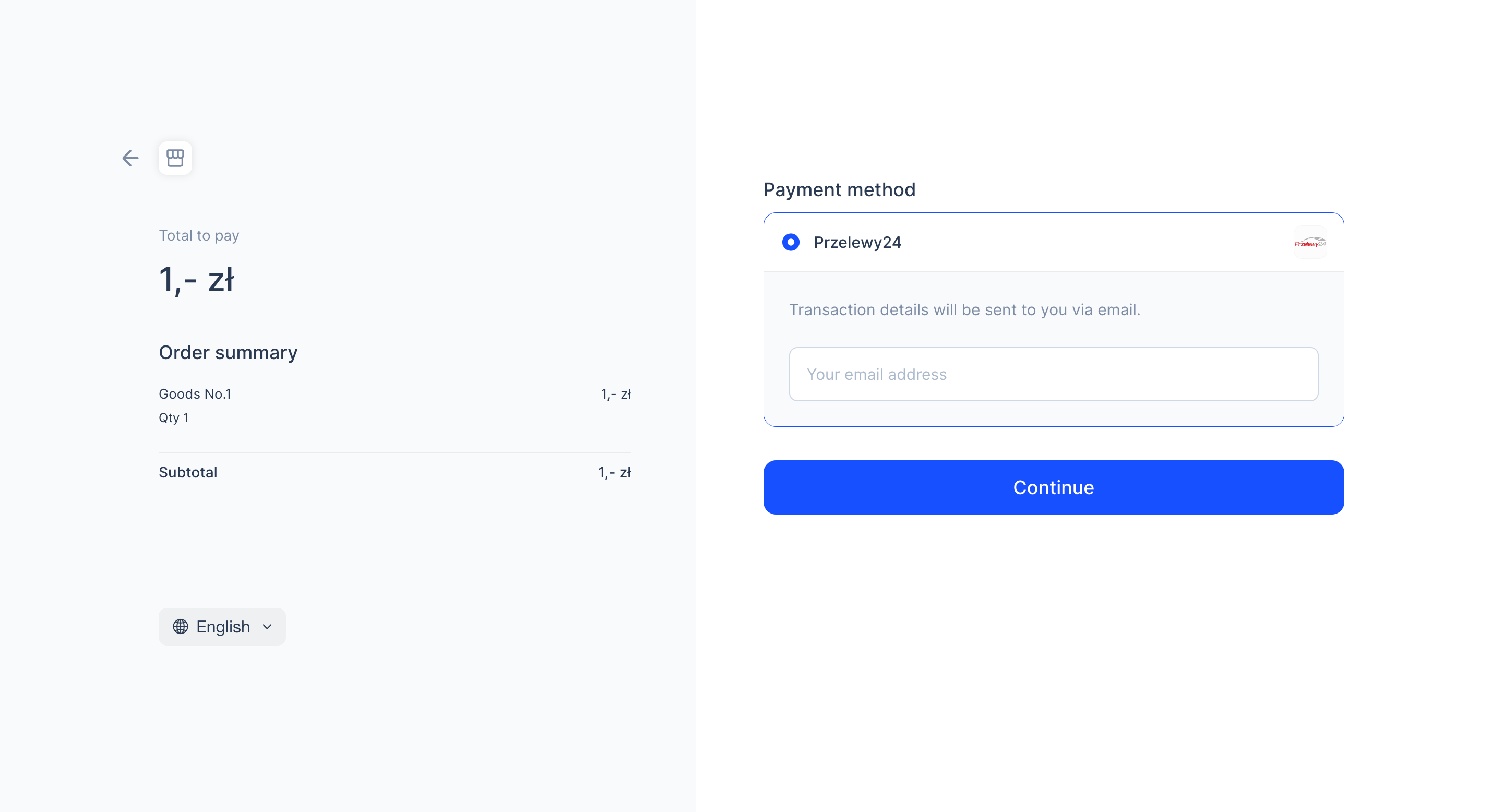

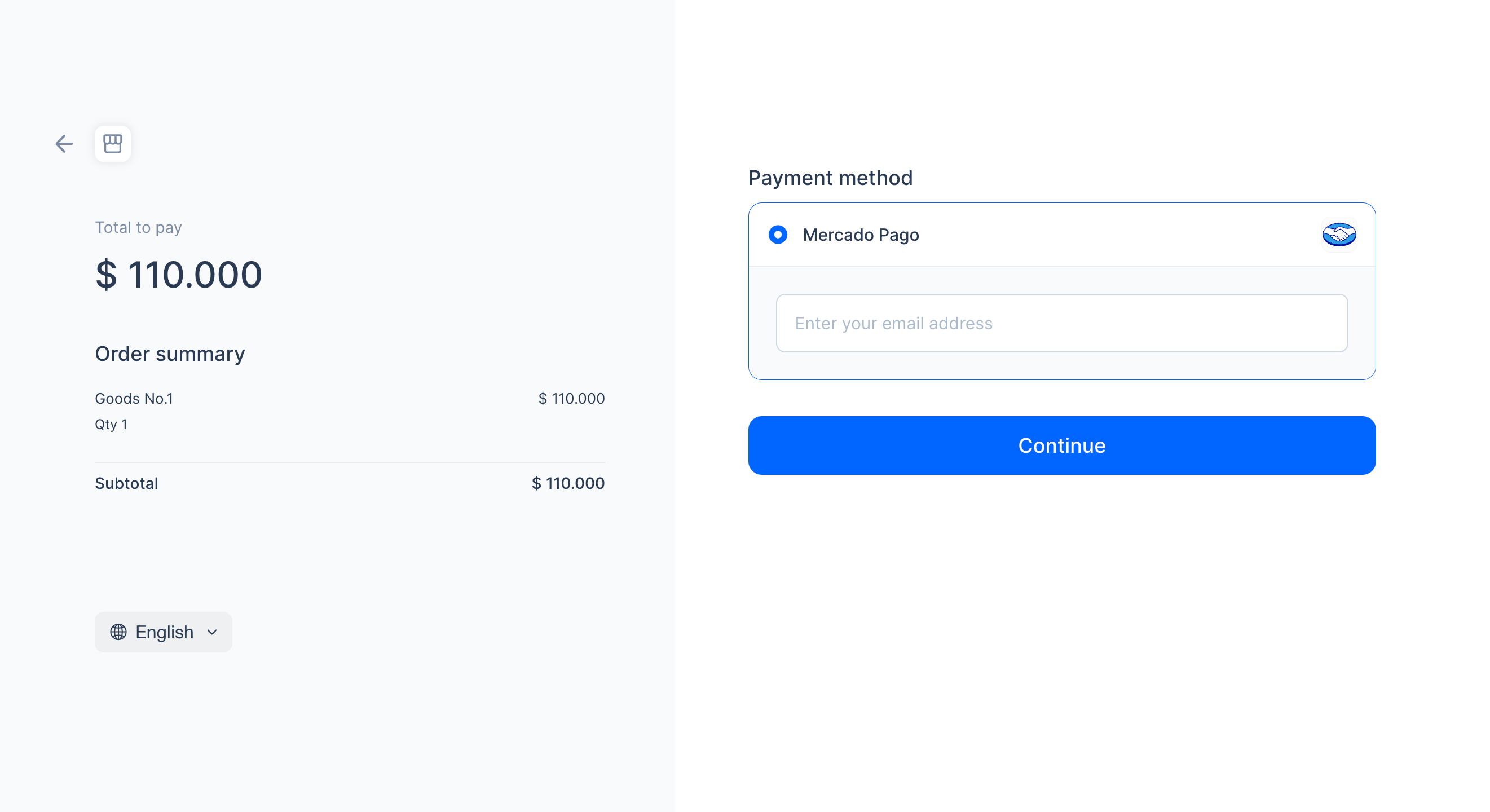

The image shows the rendered merchant's page embedded with the Antom Checkout Page:

Step 3: Process asynchronous notifications Server-side

1. Set the webhook URL to receive notifications

You can choose one of following two methods to set the webhook URL to receive notifications:

• If each of your orders has a unique notification URL, we recommend to set the webhook URL in each individual request. You can pass the asynchronous notification receiving URL for the specific order through the paymentNotifyUrl field in the createPaymentSession (Checkout Payment) API.
• If all your orders share a unified notification URL, you can set the webhook URL on Antom Dashboard through Developer > Notification Address. For detailed steps, refer to Notification URL.

{
  "actualPaymentAmount": {
    "currency": "KRW",
    "value": "100"
  },
  "notifyType": "PAYMENT_RESULT",
  "paymentAmount": {
    "currency": "KRW",
    "value": "100"
  },
  "paymentCreateTime": "2024-04-19T01:10:49-07:00",
  "paymentId": "20240419194010800100188350218317930",
  "paymentRequestId": "amsdmpay_yuqian_fyf_0b3bd5e9-14bd-4cea-b288-091d9c6862ed",
  "paymentResultInfo": {},
  "paymentTime": "2024-04-19T01:12:14-07:00",
  "pspCustomerInfo": {
    "pspCustomerId": "a070c0d1b89af442c6aa01886f0183de812a5d3d4fe15c771145b2b844a9dd67",
    "pspName": "TOSSPAY"
  },
  "paymentMethodType": "TOSSPAY",
  "result": {
    "resultCode": "SUCCESS",
    "resultMessage": "success.",
    "resultStatus": "S"
  }
}

{
    "actualPaymentAmount": {
        "currency": "USD",
        "value": "1"
    },
    "cardInfo": {
        "avsResultRaw": "U",
        "cardBrand": "MASTERCARD",
        "cardNo": "************1876",
        "cvvResultRaw": "Y",
        "funding": "CREDIT",
        "issuingCountry": "CN",
        "networkTransactionId": "MEB88D1C91119",
        "paymentMethodRegion": "GLOBAL",
        "threeDSResult": {
            "cavv": "",
            "eci": ""
        }
    },
    "notifyType": "PAYMENT_RESULT",
    "paymentAmount": {
        "currency": "USD",
        "value": "1"
    },
    "paymentCreateTime": "2024-11-18T23:51:51-08:00",
    "paymentId": "20241119194010800100188200260012929",
    "paymentMethodType": "CARD",
    "paymentRequestId": "PAYMENT_20241119155126620_AUTO",
    "paymentResultInfo": {
        "avsResultRaw": "U",
        "cardBrand": "MASTERCARD",
        "cardNo": "************1876",
        "cvvResultRaw": "Y",
        "funding": "CREDIT",
        "issuingCountry": "CN",
        "networkTransactionId": "MEB88D1C91119",
        "paymentMethodRegion": "GLOBAL",
        "threeDSResult": {
            "cavv": "",
            "eci": ""
        }
    },
    "paymentTime": "2024-11-18T23:51:55-08:00",
    "result": {
        "resultCode": "SUCCESS",
        "resultMessage": "success.",
        "resultStatus": "S"
    }
}

{
    "captureAmount": {
        "currency": "USD",
        "value": "1"
    },
    "captureId": "20241119194010807000188200261316896",
    "captureRequestId": "PAYMENT_20241119155126620_AUTO",
    "captureTime": "2024-11-18T23:51:58-08:00",
    "notifyType": "CAPTURE_RESULT",
    "paymentId": "20241119194010800100188200260012929",
    "result": {
        "resultCode": "SUCCESS",
        "resultMessage": "success.",
        "resultStatus": "S"
    }
}

Common Questions

Q: When will the notification be sent?

A: The sending time of asynchronous notifications varies in different scenarios.

• If the payment is successfully completed, Antom will usually send you an asynchronous notification within 3 to 5 seconds. For some payment methods like OTC, the notification might take a bit longer.
• If the buyer does not submit a payment, when the payment session times out, Antom does not send an asynchronous notification.
• If the buyer submits a payment but the final payment is not completed:

• When the last order is closed, if the payment session is still valid, Antom will send asynchronous notifications when the payment session expires.
• When the last order is closed, if the payment session expired, Antom will send an asynchronous notification when the last order is closed.

Note: The default payment session expiry time is 1 hour. The time it takes to close an order varies for different payment methods, the default is 14 minutes.

Q: Will the asynchronous notification be re-sent?

A: Yes, the asynchronous notification will be re-sent automatically within 24 hours for the following cases:

• If you didn't receive the asynchronous notification due to network reasons.
• If you receive an asynchronous notification from Antom, but you didn't make a response to the notification in the Sample code format.

The notification can be resent up to 8 times or until a correct response is received to terminate delivery. The sending intervals are as follows: 0 minutes, 2 minutes, 10 minutes, 10 minutes, 1 hour, 2 hours, 6 hours, and 15 hours.

Q: What are the key parameters in the notification that I need to use?

A: Pay attention to the following key parameters:

• result: indicates the payment result of the order.
• paymentRequestId: indicates the payment request number you generated for consult, cancel, and reconciliation.
• paymentId: indicates the payment order number generated by Antom, used for refund and reconciliation.
• paymentAmount: indicates the payment amount.
• paymentMethodTpye: indicates the payment method type that is included in payment method options.

Q: There are two types of asynchronous notifications. Which one should be used as the basis for shipment?

A: When you receives a PAYMENT_RESULT notifyType notification, you should first check whether the paymentMethodType is CARD. If it is not CARD, you can decide whether to proceed with shipment based on the result of this notification. If it is CARD, you need to wait for a notification of CAPTURE_RESULT type before making the decision to ship.

2. Verify asynchronous notifications

If you receive an asynchronous notification from Antom, you are required to return the response in the Sample code format, but you do not need to countersign the response.

You need to verify the signature of the payment notification sent by Antom.

/**
 * receive notify
 *
 * @param request    request
 * @param notifyBody notify body
 * @return Result
 */
@PostMapping("/receiveNotify")
@ResponseBody
public Result receiveNotify(HttpServletRequest request, @RequestBody String notifyBody) {
    // retrieve the required parameters from http request
    String requestUri = request.getRequestURI();
    String requestMethod = request.getMethod();
    // retrieve the required parameters from request header
    String requestTime = request.getHeader("request-time");
    String clientId = request.getHeader("client-id");
    String signature = request.getHeader("signature");
    try {
        // verify the signature of notification
        boolean verifyResult = WebhookTool.checkSignature(requestUri, requestMethod, clientId,
                                                          requestTime, signature, notifyBody, ANTOM_PUBLIC_KEY);
        if (!verifyResult) {
            throw new RuntimeException("Invalid notify signature");
        }
        // deserialize the notification body
        JSONObject jsonObject = JSON.parseObject(notifyBody);
        String notifyType = (String)jsonObject.get("notifyType");
        if("PAYMENT_RESULT".equals(notifyType)){
            AlipayPayResultNotify paymentNotify = jsonObject.toJavaObject(AlipayPayResultNotify.class);
            if (paymentNotify != null && "SUCCESS".equals(paymentNotify.getResult().getResultCode())) {
                // handle your own business logic.
                // e.g. The relationship between payment information and users is kept in the database.
                System.out.println("receive payment notify: " + JSON.toJSONString(paymentNotify));
                return Result.builder().resultCode("SUCCESS").resultMessage("success.").resultStatus(ResultStatusType.S).build();
            }
        }else if("CAPTURE_RESULT".equals(notifyType)){
            AlipayCaptureResultNotify captureNotify = jsonObject.toJavaObject(AlipayCaptureResultNotify.class);
            if (captureNotify != null && "SUCCESS".equals(captureNotify.getResult().getResultCode())) {
                // handle your own business logic.
                System.out.println("receive capture notify: " + JSON.toJSONString(captureNotify));
                return Result.builder().resultCode("SUCCESS").resultMessage("success.").resultStatus(ResultStatusType.S).build();
            }
        }
    } catch (Exception e) {
        // handle error condition
        return Result.builder().resultCode("FAIL").resultMessage("fail.").resultStatus(ResultStatusType.F).build();
    }
    return Result.builder().resultCode("SYSTEM_ERROR").resultMessage("system error.").resultStatus(ResultStatusType.F).build();
}

You do not need to sign the response for the notification result. However, you must respond to each notification request in the following fixed format, regardless of whether the payment is successful or not.

{
    "result": {
        "resultCode": "SUCCESS",
        "resultStatus": "S",
        "resultMessage": "success"
    }
}

After payments

Inquire payments

In addition to obtaining the buyer's payment result through the asynchronous notification, you can retrieve the corresponding payment result through the inquire payments service. You can call the inquiryPayment API and use the paymentRequestId from the payment session to check the payment status.

The following code shows how to call the inquiryPayment API:

public static void inquiryPayment() {
    AlipayPayQueryRequest alipayPayQueryRequest = new AlipayPayQueryRequest();
    // replace with your paymentRequestId
    alipayPayQueryRequest.setPaymentRequestId("yourPaymentRequestId");
    AlipayPayQueryResponse alipayPayQueryResponse = null;
    try {
        alipayPayQueryResponse = CLIENT.execute(alipayPayQueryRequest);
    } catch (AlipayApiException e) {
        String errorMsg = e.getMessage();
        // handle error condition
    }
}

The following code shows an example of a response:

{
    "actualPaymentAmount": {
        "currency": "USD",
        "value": "1"
    },
    "customsDeclarationAmount": {
        "currency": "CNY",
        "value": "7"
    },
    "paymentAmount": {
        "currency": "USD",
        "value": "1"
    },
    "paymentId": "20250305194010800100188690281017336",
    "paymentMethodType": "ALIPAY_CN",
    "paymentRedirectUrl": "https://checkout.antom.com/checkout-page/pages/payment/index.html?sessionData=%2BCUim8L0KviXagaygm9xBL5jZ%2F75w6gAX1nn8pcuFuGkIsMoHtD6U88YSyMrMJvorbwnBg5uQv8e6pyvIpjDQQ%3D%3D%26%26SG%26%26188%26%26eyJleHRlbmRJbmZvIjoie1wiT1BFTl9NVUxUSV9QQVlNRU5UX0FCSUxJVFlcIjpcInRydWVcIixcImxvY2FsZVwiOlwiZW5fVVNcIixcImRpc3BsYXlBbnRvbUxvZ29cIjpcInRydWVcIn0iLCJwYXltZW50U2Vzc2lvbkNvbmZpZyI6eyJwYXltZW50TWV0aG9kQ2F0ZWdvcnlUeXBlIjoiQUxMIiwicHJvZHVjdFNjZW5lIjoiQ0hFQ0tPVVRfUEFZTUVOVCIsInByb2R1Y3RTY2VuZVZlcnNpb24iOiIxLjAifSwic2VjdXJpdHlDb25maWciOnsiYXBwSWQiOiIiLCJhcHBOYW1lIjoiT25lQWNjb3VudCIsImJpelRva2VuIjoiNlRjZGJyMnJGM3JQWXg0aGtWckhxYnZqIiwiZ2F0ZXdheSI6Imh0dHBzOi8vaW1ncy1zZWEuYWxpcGF5LmNvbS9tZ3cuaHRtIiwiaDVnYXRld2F5IjoiaHR0cHM6Ly9vcGVuLXNlYS1nbG9iYWwuYWxpcGF5LmNvbS9hcGkvb3Blbi9yaXNrX2NsaWVudCIsIndvcmtTcGFjZUlkIjoiIn0sInNraXBSZW5kZXJQYXltZW50TWV0aG9kIjpmYWxzZX0%3D",
    "paymentRequestId": "PAYMENT_20250305220039086_AUTO",
    "paymentResultCode": "SUCCESS",
    "paymentResultMessage": "success.",
    "paymentStatus": "SUCCESS",
    "paymentTime": "2025-03-05T06:02:34-08:00",
    "pspCustomerInfo": {
        "pspName": "ALIPAY_CN"
    },
    "result": {
        "resultCode": "SUCCESS",
        "resultMessage": "success.",
        "resultStatus": "S"
    }
}

The table shows the possible values of paymentStatus returned in the response:

Note: When inquiring about the transaction, if the buyer does not submit the order, the ORDER_NOT_EXIST error code will be returned. This error is not returned if the order is submitted.

Refund

To learn about Antom refund rules and how to initiate a refund for a successful transaction, see Refund for more information.

Dispute

When a buyer chooses to pay with a card, a dispute may occur. To learn more, see Dispute.

Reconciliation

After the transaction is completed, use the financial reports provided by Antom for reconciliation. For more information on how to reconcile and the settlement rules of Antom, please refer to Reconciliation.

Payment method features

Card payments

If your payment method includes cards, the buyer's information from the merchant side must be passed in the payment session parameters. In the order.buyer field, at least one of the following parameters must be provided: referenceBuyerId, buyerPhoneNo, or buyerEmail. If the buyer's information is not provided, when the buyer selects the card payment method and submits the payment, an error will occur on the page, resulting in the inability to complete the payment process.

{
    "order": {
        ...
        "buyer": {
            "referenceBuyerId": "88888888",
            "buyerEmail": "gaga@test.com",
            "buyerPhoneNo": "18888888888"
        }
    },
...
}

Activate 3D Secure 2

To learn more about 3D Secure 2, see 3D Secure 2 authentication.

• If you already possess risk control capabilities or have integrated third-party risk control services: you can specify the value of availablePaymentMethod.paymentMethodMetaData.is3DSAuthentication as TRUE through the createPaymentSession (Checkout Payment) API based on your risk assessment.
• If you currently do not have risk control capabilities: you can contact the Antom business team to enable Antom card fraud risk service. With this service, the Antom risk control model will assist in determining whether a transaction requires 3DS authentication for security verification. In this scenario, you do not need to set the value of availablePaymentMethod.paymentMethodMetaData.is3DSAuthentication.

{
  ...
    "availablePaymentMethod": {
        "paymentMethodMetaData": {
            "is3DSAuthentication": true
        }
    },
  ...
}

When a transaction passes 3DS authentication, the corresponding 3DS information will be included in the asynchronous notification. You can check the information in the paymentResultInfo.threeDSResult field.

{
    "actualPaymentAmount": {
        "currency": "HKD",
        "value": "10"
    },
    "notifyType": "PAYMENT_RESULT",
    "paymentAmount": {
        "currency": "HKD",
        "value": "10"
    },
    "paymentCreateTime": "2025-03-01T02:58:03-08:00",
    "paymentId": "20250301194010800100188350280757901",
    "paymentMethodType": "CARD",
    "paymentRequestId": "PAYMENT_20250301185416669_AUTO",
    "paymentResultInfo": {
        "avsResultRaw": "I",
        "cardBrand": "VISA",
        "cardCategory": "CONSUMER",
        "cardNo": "************0197",
        "cardToken": "ALIPAYEfG2DFbGx2Eh739qU+VMnCPEe7MfRKfMfC5k7k/IFASWpAh/vCxHV3dPYpbkGz1iyWCloE4MwfmN48sP8+rSPQ==",
        "cvvResultRaw": "",
        "funding": "CREDIT",
        "issuingCountry": "HK",
        "networkTransactionId": "585060394953881",
        "paymentMethodRegion": "GLOBAL",
        "threeDSResult": {
            "cavv": "AJkBAyh5UQAAAAAKNEBgdQAAAAA=",
            "eci": "05",
            "threeDSVersion": "2.2.0"
        }
    },
    "paymentTime": "2025-03-01T02:58:19-08:00",
    "result": {
        "resultCode": "SUCCESS",
        "resultMessage": "success.",
        "resultStatus": "S"
    }
}

APM payments

Przelewy24

When the buyer selects Przelewy24 as the payment method, you can optimize the email input experience:

Pass the availablePaymentMethod.paymentMethodMetaData.payerEmail field in the createPaymentSession (Checkout Payment) API. The Antom Checkout Page will automatically pre-fill the email address in the payment options, eliminating the need for manual input by the buyer.

{
  ...
    "availablePaymentMethod": {
        "paymentMethodMetaData": {
            "payerEmail": "123221321@test.com",
        }
    },
  ...
}

{
  ...
    "availablePaymentMethod": {
        "paymentMethodMetaData": {
        }
    },
  ...
}

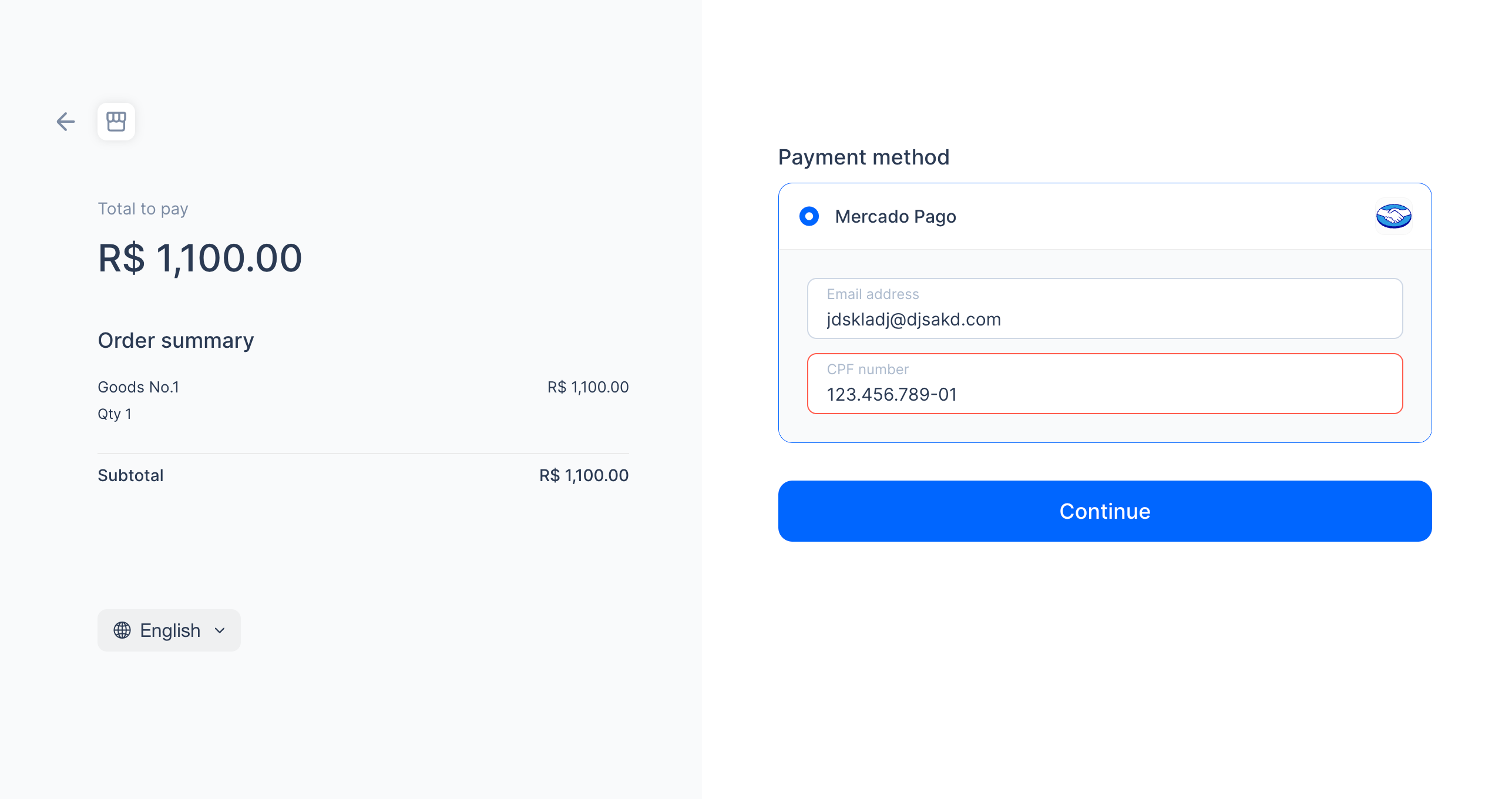

Mercado Pago

When the buyer selects Mercado Pago as the payment method, you can optimize the input experience using the following methods:

• Pass the availablePaymentMethod.paymentMethodMetaData.payerEmail field in the createPaymentSession (Checkout Payment) API. The Antom Checkout Page will automatically pre-fill the email address in the payment options, eliminating the need for manual input by the buyer.
• Pass the availablePaymentMethod.paymentMethodMetaData.cpf field in the createPaymentSession (Checkout Payment) API. The Antom Checkout Page will automatically pre-fill the CPF number, eliminating the need for manual input by the buyer.

{
  ...
    "availablePaymentMethod": {
        "paymentMethodMetaData": {
            "payerEmail": "123221321@test.com",
        }
    },
  ...
}

{
  ...
    "availablePaymentMethod": {
        "paymentMethodMetaData": {
            "payerEmail": "123221321@test.com",
            "cpf":"2132321312",
        }
    },
  ...
}

{
  ...
    "availablePaymentMethod": {
        "paymentMethodMetaData": {
        }
    },
  ...
}

Additional content

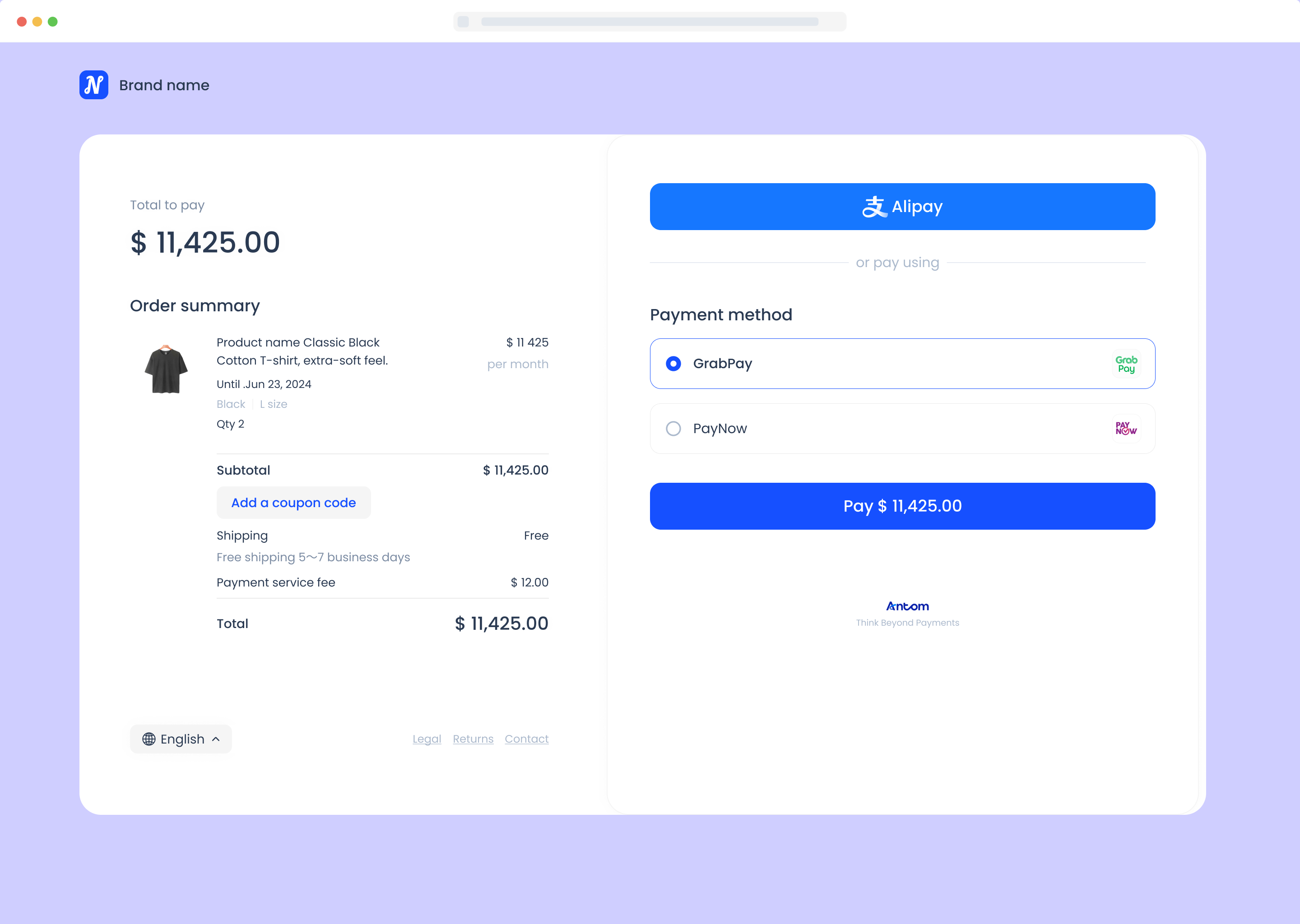

Specify a payment method

You can modify the parameters in the createPaymentSession (Checkout Payment) API to specify the display of payment methods on Checkout Page, the order of the payment method list, and the display of quick payments.

Benefits

• Filter local payment methods based on your business region.
• Sort your preferred payment methods.
• Display the mainstream quick payments, such as Alipay, Apple Pay, and Google Pay.

How to enable

You can pass payment methods through API parameters or configure them on Antom Dashboard through Checkout page> Payment method. If you pass parameters through the API, the API values take priority.

{ ...
  "availablePaymentMethod": {
    "paymentMethodTypeList": [
      {
        "paymentMethodType": "ALIPAY_CN",
        "expressCheckout": true,
        "paymentMethodOrder": "0"
      },
      {
        "paymentMethodType": "TNG",
        "expressCheckout": false,
        "paymentMethodOrder": "1"
      }
    ]
  }
}

{ ...
  "availablePaymentMethod": {
    "paymentMethodTypeList": [
      {
        "paymentMethodType": "ALIPAY_CN",
        "expressCheckout": true,
        "paymentMethodOrder": "0"
      },
      {
        "paymentMethodType": "TNG",
        "expressCheckout": false,
        "paymentMethodOrder": "1"
      }
    ]
  }
}

{ ...
  "availablePaymentMethod": {
    "paymentMethodTypeList": [
      {
        "paymentMethodType": "ALIPAY_CN",
        "expressCheckout": true,
        "paymentMethodOrder": "0"
      },
      {
        "paymentMethodType": "TRUEMONEY",
        "expressCheckout": false,
        "paymentMethodOrder": "1"
      }
    ]
  }
}

Antom tokenization

You can help the buyer complete tokenized payments by saving and passing the buyer's card token information, the user experience is as follows:

Benefits

• Allow buyers to store their payment method information for a faster checkout experience in future transactions.
• Storing payment method information allows the display of detailed payment method information, which helps boost buyers' trust during payment.
• The use of cardToken during payment helps achieve a higher payment success rate.

How to enable

You can use the following steps to complete tokenized payments:

1. To display the card-vaulting button, specify the value of the availablePaymentMethod.paymentMethodMetaData.tokenizeMode field as ASKFORCONSENT through the createPaymentSession (Checkout Payment) API, the card-vaulting button can be displayed in the card payment option on the Antom Checkout Page.

{
...
    "availablePaymentMethod": {
        "paymentMethodMetaData": {
            "tokenizeMode": "ASKFORCONSENT"
        }
    }
}

2. To vault the card after the first payment, when the buyer saves their bank card information on your page, make sure to associate it with the buyer information and save the corresponding card information on your server. (Retrieve the value of cardToken from the paymentResultInfo field in the notifyPayment API.)

{
    "actualPaymentAmount": {
        "currency": "HKD",
        "value": "10"
    },
    "notifyType": "PAYMENT_RESULT",
    "paymentAmount": {
        "currency": "HKD",
        "value": "10"
    },
    "paymentCreateTime": "2025-03-01T02:58:03-08:00",
    "paymentId": "20250301194010800100188350280757901",
    "paymentMethodType": "CARD",
    "paymentRequestId": "PAYMENT_20250301185416669_AUTO",
    "paymentResultInfo": {
        "avsResultRaw": "I",
        "cardBrand": "VISA",
        "cardCategory": "CONSUMER",
        "cardNo": "************0197",
        "cardToken": "ALIPAYEfG2DFbGx2Eh739qU+VMnCPEe7MfRKfMfC5k7k/IFASWpAh/vCxHV3dPYpbkGz1iyWCloE4MwfmN48sP8+rSPQ==",
        "cvvResultRaw": "",
        "funding": "CREDIT",
        "issuingCountry": "HK",
        "networkTransactionId": "585060394953881",
        "paymentMethodRegion": "GLOBAL",
        "threeDSResult": {
            "cavv": "AJkBAyh5UQAAAAAKNEBgdQAAAAA=",
            "eci": "05",
            "threeDSVersion": "2.2.0"
        }
    },
    "paymentTime": "2025-03-01T02:58:19-08:00",
    "result": {
        "resultCode": "SUCCESS",
        "resultMessage": "success.",
        "resultStatus": "S"
    }
}

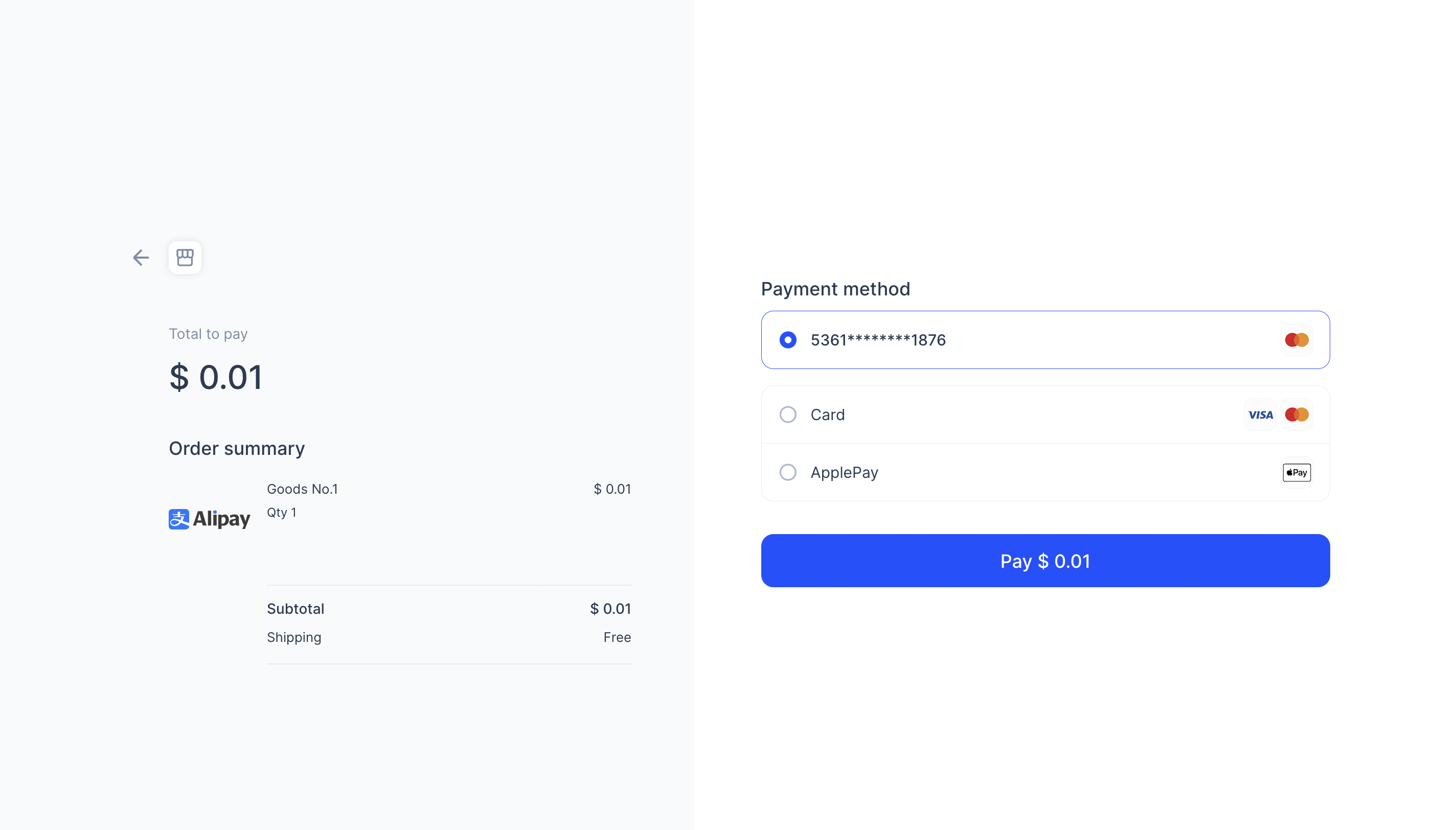

3. To use the card token in subsequent payments, when the buyer has a saved bank card, you need to pass the card token information through the createPaymentSession (Checkout Payment) API. This is to display the buyer's saved card information on the Antom Checkout Page, allowing the buyer to use it to complete payments.

The sample code below shows the createPaymentSession (Checkout Payment) API initiates a request using the card token when the buyer uses a saved bank card to make payment.

{
  ...
    "savedPaymentMethods": [
        {
            "paymentMethodType": "CARD",
            "paymentMethodId": "ALIPAYEfG2DFbGx2Eh739qU+VMnCPEe7MfRKfMfC5k7k/IFASWpAh/vCxHV3dPYpbkGz1iyWCloE4MwfmN48sP8+rSPQ=="
        }
    ]
}
