Server-to-server recurring payments

Subscription payment is a payment solution that supports periodic automatic deductions, helping you easily achieve automated recurring revenue collection. Buyers only need to complete a one-time authorization and binding to continuously enjoy subscription services, while also supporting flexible adjustments to subscription configurations (such as modifying cycles/amounts, canceling renewals, or terminating services). The entire process is secure, reliable, and user-friendly, balancing efficiency with transaction security.

This topic describes how to integrate card payment methods through the server-to-server integration mode, which is suitable for merchants with high requirements for payment process customization. This mode requires that you are PCI qualified. Please provide the relevant materials based on your business needs to complete the verification:

• If your annual card transaction volume is expected to exceed 6 million, complete and submit the PCI Attestation of Compliance (AoC) file for verification.
• If your annual card transaction volume is expected to be below 6 million, complete and submit the PCI DSS Self-Assessment Questionnaires (SAQs) file for verification.

For more information about PCI DSS compliance requirements, see PCI DSS standard.

Note: This solution requires you to collect the buyer's card information independently. You must possess PCI compliance certification—please ensure you have completed PCI validation as required.

User experience

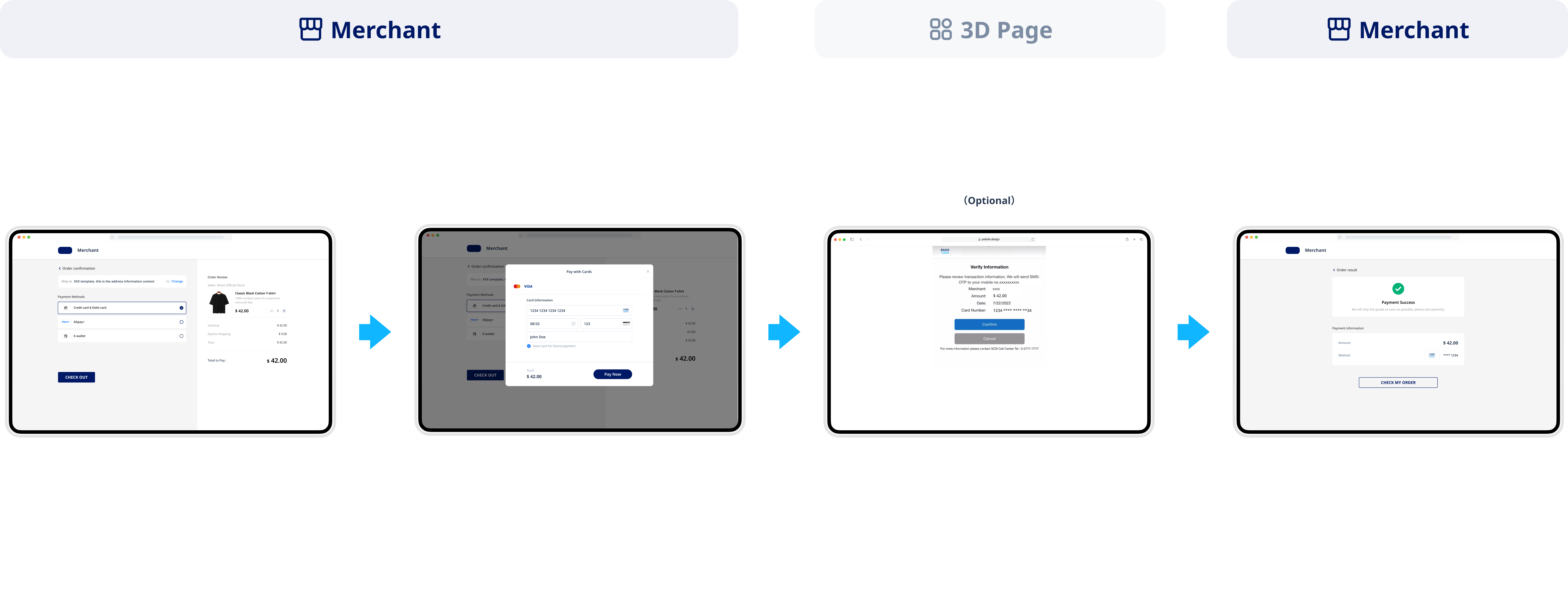

The following figures illustrates the user experience of the first-time subscription and subsequent deductions:

Note: When subscribing to payment services that require card binding, the first transaction requires the buyer completing the 3DS authentication process.

Order lifecycle

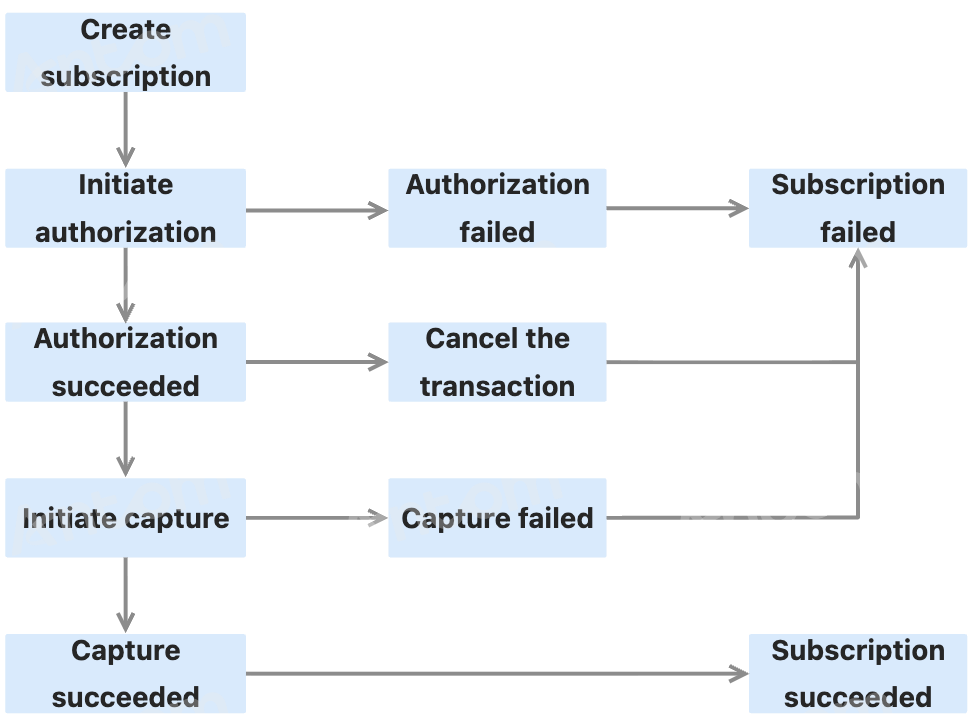

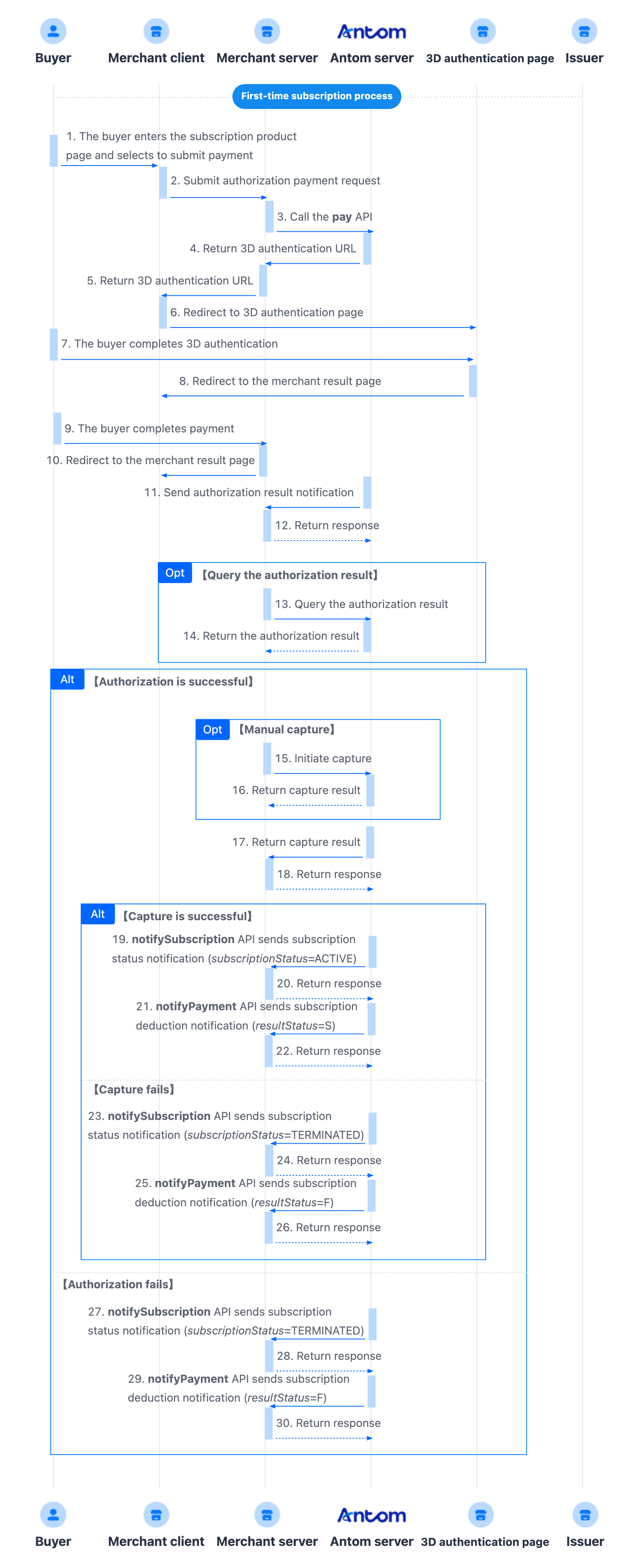

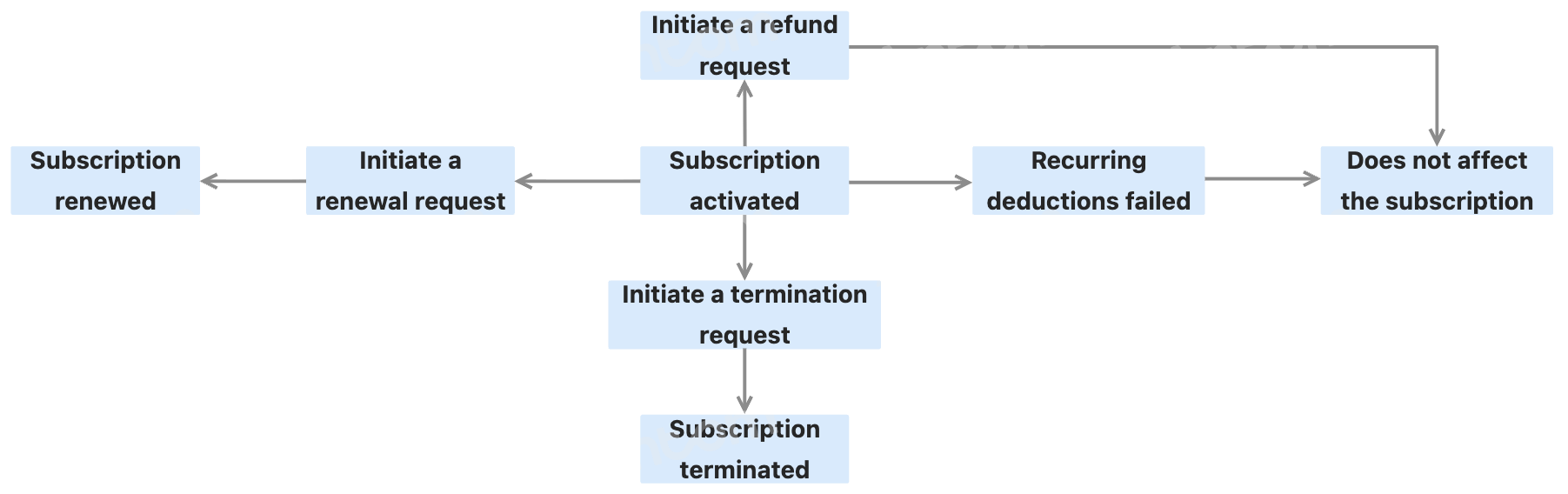

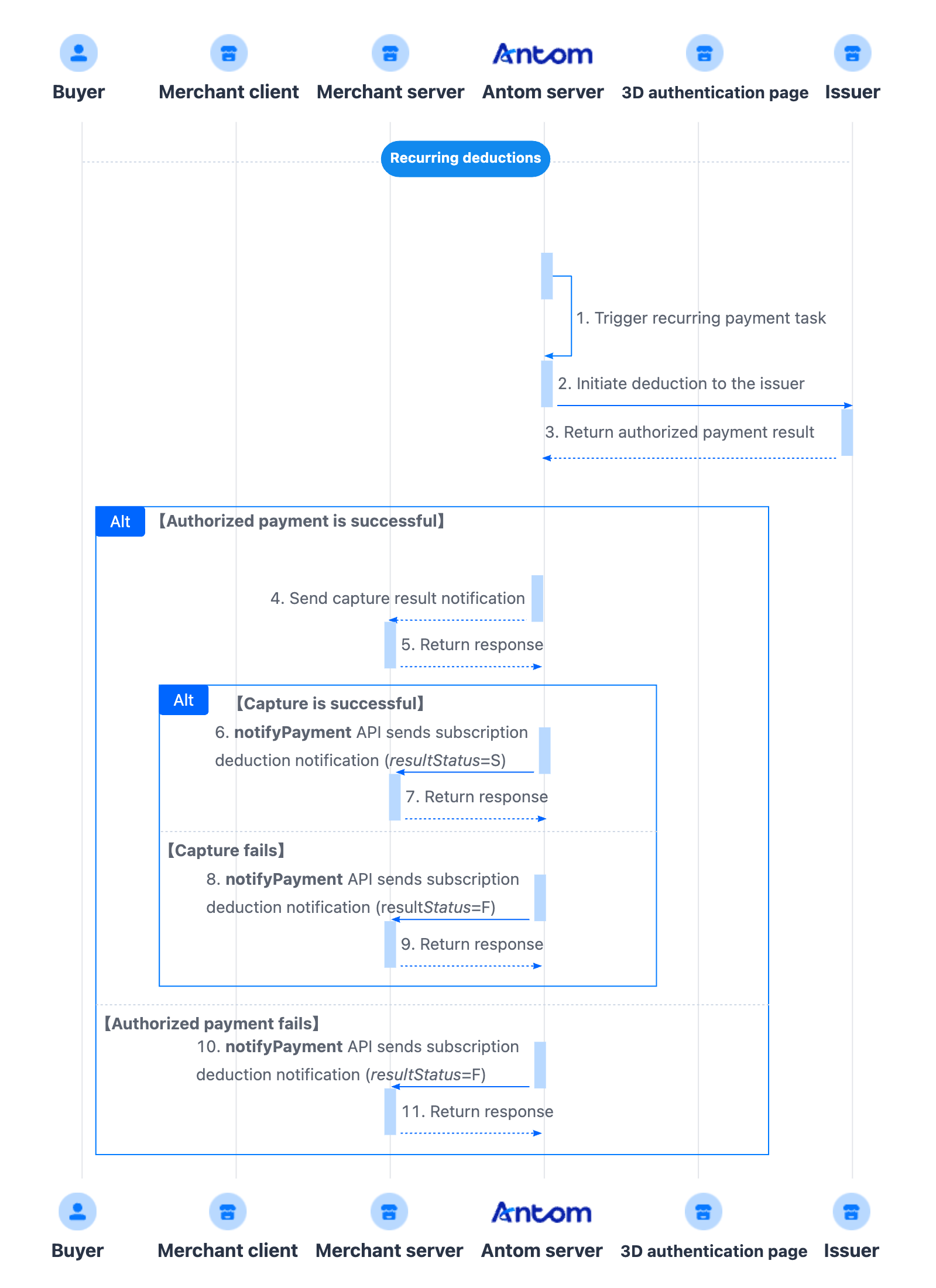

The following diagram illustrates the process of subscription cycle, creating subscription, and receiving payment notifications.

Integration preparations

Integration steps

Start your integration by taking the following steps:

1. Add a list of payment methods
2. Create a recurring payment request
3. Redirect to 3D authentication page (normalUrl)
4. Obtain the authorization result
5. Capture and obtain the capture result
6. Obtain the subscription notifications

Step 1: Add a list of payment methods Client-side

When the buyer enters the payment method selection page, the card brand identifiers and names to be integrated for this transaction should be displayed, allowing the buyer to choose according to their needs and preferences.

Note: The payment method list page needs to be implemented by you.

Step 2: Create an authorized recurring payment Server-side

You need to collect the buyer's payment information (for example, card number and exporation date), subscription information (for example, the deduction amount and cycle), order information, device information, and payment amount. Call the pay (One-time Payments) API, and submit an authorization subscription request for payment.

The subscription creation process includes the following key parameters:

The following sample code shows how to call the pay (One-time Payments) API:

public static void payByCardServer2Server() {
    AlipayPayRequest alipayPayRequest = new AlipayPayRequest();
    alipayPayRequest.setProductCode(ProductCodeType.CASHIER_PAYMENT);

    // Replace with your paymentRequestId
    String paymentRequestId = UUID.randomUUID().toString();
    alipayPayRequest.setPaymentRequestId(paymentRequestId);

    // Set subscription information
    SubscriptionInfo subscriptionInfo = new SubscriptionInfo();
    subscriptionInfo.setSubscriptionDescription("Subscription Description");
    LocalDateTime localNow = LocalDateTime.now();
    OffsetDateTime offsetDateTime = localNow.atOffset(ZoneOffset.of("+08:00"));
    String startTime = offsetDateTime.format(DateTimeFormatter.ISO_OFFSET_DATE_TIME);
    subscriptionInfo.setSubscriptionStartTime(startTime);

    subscriptionInfo.setSubscriptionNotifyUrl("https://www.yourDomain.com/subscription/notify");
    PeriodRule periodRule = new PeriodRule();
    periodRule.setPeriodType("MONTH");
    periodRule.setPeriodCount(1);
    subscriptionInfo.setPeriodRule(periodRule);
    alipayPayRequest.setSubscriptionInfo(subscriptionInfo);

    // Set amount
    Amount amount = Amount.builder().currency("SGD").value("4200").build();
    alipayPayRequest.setPaymentAmount(amount);

    // Set payment method
    PaymentMethod paymentMethod = PaymentMethod.builder().paymentMethodType("CARD").build();
    alipayPayRequest.setPaymentMethod(paymentMethod);

    // Card information
    Map<String, Object> paymentMethodMetaData = new HashMap<>();
    paymentMethodMetaData.put("cardNo", "4054695723100768");
    paymentMethodMetaData.put("cvv", "123");
    paymentMethodMetaData.put("expiryMonth", "12");
    paymentMethodMetaData.put("expiryYear", "99");
    paymentMethodMetaData.put("tokenizeMode", false);
    paymentMethodMetaData.put("is3DSAuthentication", true);

    JSONObject cardholderName = new JSONObject();
    cardholderName.put("firstName", "John");
    cardholderName.put("lastName", "Doe");
    paymentMethodMetaData.put("cardholderName", cardholderName);
    paymentMethod.setPaymentMethodMetaData(paymentMethodMetaData);

    // Card payment information
    SettlementStrategy settlementStrategy = SettlementStrategy.builder().settlementCurrency("SGD").build();
    alipayPayRequest.setSettlementStrategy(settlementStrategy);

    // Replace with your orderId
    String orderId = UUID.randomUUID().toString();

    // Set buyer information
    Buyer buyer = Buyer.builder().referenceBuyerId("yourBuyerId").build();

    // Set order information
    Order order = Order.builder().referenceOrderId(orderId)
    .orderDescription("antom testing order").orderAmount(amount).buyer(buyer).build();
    alipayPayRequest.setOrder(order);

    // Set environment information
    Env env = Env.builder().terminalType(TerminalType.WEB).clientIp("1.2.3.4").build();
    alipayPayRequest.setEnv(env);

    // Set authorization payment mode
    PaymentFactor paymentFactor = PaymentFactor.builder().isAuthorization(true).build();
    alipayPayRequest.setPaymentFactor(paymentFactor);

    // Replace with your notification URL
    alipayPayRequest.setPaymentNotifyUrl("https://www.yourNotifyUrl.com");

    // Replace with your redirect URL
    alipayPay.setPaymentRedirectUrl("https://www.yourMerchantWeb.com");

    Execute payment
    AlipayPayResponse alipayPayResponse = null;
    try {
        alipayPayResponse = CLIENT.execute(alipayPayRequest);
    } catch (AlipayApiException e) {
        String errorMsg = e.getMessage();
        // Handle error message
    }
}

The following code shows a sample of the request message:

{
    "subscriptionInfo": {
        "periodRule": {
            "periodCount": 1,
            "periodType": "MONTH"
        },
        "subscriptionDescription": "Subscription Description",
        "subscriptionNotifyUrl": "https://www.yourDomain.com/subscription/notify",
        "subscriptionStartTime": "2026-03-11T17:08:32.543+08:00"
    },
    "order": {
        "buyer": {
            "referenceBuyerId": "yourBuyerId"
        },
        "orderAmount": {
            "currency": "SGD",
            "value": "4200"
        },
        "orderDescription": "antom testing order",
        "referenceOrderId": "281c86fa-a780-4804-8d43-7737599843a8"
    },
    "env": {
        "clientIp": "1.2.3.4",
        "terminalType": "WEB"
    },
    "paymentAmount": {
        "currency": "SGD",
        "value": "4200"
    },
    "paymentFactor": {
        "isAuthorization": true
    },
    "paymentMethod": {
        "paymentMethodMetaData": {
            "cvv": "123",
            "cardholderName": {
                "firstName": "John",
                "lastName": "Doe"
            },
            "expiryMonth": "12",
            "expiryYear": "99",
            "cardNo": "4054695723100768",
            "is3DSAuthentication": true,
            "tokenizeMode": false
        },
        "paymentMethodType": "CARD"
    },
    "settlementStrategy": {
        "settlementCurrency": "SGD"
    },
    "paymentNotifyUrl": "https://www.yourNotifyUrl.com",
    "paymentRedirectUrl": "https://www.yourMerchantWeb.com",
    "paymentRequestId": "275624ab-5d33-43a5-9a4d-6e660bd00c43",
    "productCode": "CASHIER_PAYMENT"
}

The following code shows a sample of the response, which contains the following parameters:

• result.resultStatus: The status of the authorized payment.
• normalUrl: The URL used to redirect to 3D authentication page.


{
    "normalUrl": "https://iexpfront-sea.alipay.com/authorise3d?merchantId=1887SjzZ56b1lvObJWQTaqG4PhACjUGncnl0Sihzg8en5I%3D&ddcId=m47qH0MLK7A7yJNVdjLYJOlH5V9T9z53bmrgN8gJXC0%3D&pass=lt%5E1&needDDC=Y&from=iexpcore",
    "paymentActionForm": "{\"method\":\"POST\",\"parameters\":\"{\\\"JWT\\\":\\\"eyJraWQiOiJDQVJESU5BTF9KV1RfYWxpcGF5IiwiY3R5IjoiQ0FSRElOQUxfSldUX2FsaXBheSIsImFsZyI6IkhTMjU2In0.eyJPcmdVbml0SWQiOiI1ZDVmMTA2MjRiNzkyYTFhZTBkN2Y3MTEiLCJSZWZlcmVuY2VJZCI6IjFmOTVkMTQ0LTcwZTAtNGFkYS1hZTY2LWViNjM2OWQ2YmMzMiIsIlJldHVyblVybCI6Imh0dHBzOi8vb3Blbi1uYS5hbGlwYXkuY29tL2FwaS9vcGVuL3VybF9jYWxsYmFja19nZXQvY2FyZGluYWwvY2FyZGluYWwwMDcuaHRtP3NpZ25EYXRhPVF0ZlolMkZuU0Y2dDVURTFJVnRRNkVycHQ3NSUyQjBxOE1zMlYxbW9iUm9WVnBlMUdpYlVTNFJBWEJldDNNJTJCNHRFWDU5OEx0JTJCVzhUem1XRXRpelc0czdRQVhLRGZwajJDSG5MUHRjQSUyRjNIT3Z6TXp1JTJCSzM1NSUyQnBLS1h3eXNSVkU4cTJVaUZWTzhMRTVWTE5JZ0paRjdVQUZMWVE2RElmSmNKenFVNFBUMm1oaTRDT3ZEZVJ3NFVNSzRWWjA4U1M0SnJ2Yk9teXhHaXgwV2tJUEdJSk5RcVpUVyUyQnhyZFAlMkJSMXhNMCUyRjVlejVqc2JkTHowMmFJNGp0SzFLanU4d3pvNnBxVWxrNXU4dm1jb1d5MHI0dlJwRUslMkJHbmJNM0o4eUxuWmNDNER5TiUyRjIlMkJIVGFiYnBpRFdWSGZRbjF5QyUyQlZ3ZE4yN25xcHl5RTBVc0ZDaFhveEFaTDQ5NkElM0QlM0QmaW5TZXJpYWxObz0yMDI2MDMxMzg5MDMxMzQxMDAwN0Q2MjQyODI5MDY0Jm91dE9yZGVyTm89MjAyNjAzMTM4OTAzMTM0MTAwMDdENjI0MjgyOTA2NCIsImV4cCI6MTc3MzM2ODMxOSwiaWF0IjoxNzczMzY3NDE5LCJpc3MiOiI1ZDVmZGRlOGNjZWY3NjFhZDhiODJiNjgiLCJqdGkiOiIyMDI2MDMxMzg5MDMxMzQxMDAwN0Q2MjQyODI5MDY0In0.D1yRpHR9TwvCkBlcqtGSjpj9fjphqV_FGDnls8AnuoI\\\",\\\"Bin\\\":\\\"405469\\\",\\\"DDCFlag\\\":\\\"Y\\\"}\",\"paymentActionFormType\":\"RedirectActionForm\",\"redirectUrl\":\"https://iexpfront-sea.alipay.com/authorise3d?merchantId=1887SjzZ56b1lvObJWQTaqG4PhACjUGncnl0Sihzg8en5I%3D&ddcId=m47qH0MLK7A7yJNVdjLYJOlH5V9T9z53bmrgN8gJXC0%3D&pass=lt%5E1&needDDC=Y&from=iexpcore\"}",
    "paymentAmount": {
        "currency": "SGD",
        "value": "4200"
    },
    "paymentCreateTime": "2026-03-12T19:03:38-07:00",
    "paymentId": "202603131940108****01887D0280499441",
    "paymentRequestId": "d6af2336-3cd6-4a17-94a2-10d44386****",
    "paymentResultInfo": {
        "cardBrand": "VISA",
        "cardNo": "************0768",
        "credentialTypeUsed": "PAN",
        "threeDSResult": {

        }
    },
    "paymentTime": "2026-03-12T19:03:39-07:00",
    "redirectActionForm": {
        "method": "POST",
        "parameters": "{\"JWT\":\"eyJraWQiOiJDQVJESU5BTF9KV1RfYWxpcGF5IiwiY3R5IjoiQ0FSRElOQUxfSldUX2FsaXBheSIsImFsZyI6IkhTMjU2In0.eyJPcmdVbml0SWQiOiI1ZDVmMTA2MjRiNzkyYTFhZTBkN2Y3MTEiLCJSZWZlcmVuY2VJZCI6IjFmOTVkMTQ0LTcwZTAtNGFkYS1hZTY2LWViNjM2OWQ2YmMzMiIsIlJldHVyblVybCI6Imh0dHBzOi8vb3Blbi1uYS5hbGlwYXkuY29tL2FwaS9vcGVuL3VybF9jYWxsYmFja19nZXQvY2FyZGluYWwvY2FyZGluYWwwMDcuaHRtP3NpZ25EYXRhPVF0ZlolMkZuU0Y2dDVURTFJVnRRNkVycHQ3NSUyQjBxOE1zMlYxbW9iUm9WVnBlMUdpYlVTNFJBWEJldDNNJTJCNHRFWDU5OEx0JTJCVzhUem1XRXRpelc0czdRQVhLRGZwajJDSG5MUHRjQSUyRjNIT3Z6TXp1JTJCSzM1NSUyQnBLS1h3eXNSVkU4cTJVaUZWTzhMRTVWTE5JZ0paRjdVQUZMWVE2RElmSmNKenFVNFBUMm1oaTRDT3ZEZVJ3NFVNSzRWWjA4U1M0SnJ2Yk9teXhHaXgwV2tJUEdJSk5RcVpUVyUyQnhyZFAlMkJSMXhNMCUyRjVlejVqc2JkTHowMmFJNGp0SzFLanU4d3pvNnBxVWxrNXU4dm1jb1d5MHI0dlJwRUslMkJHbmJNM0o4eUxuWmNDNER5TiUyRjIlMkJIVGFiYnBpRFdWSGZRbjF5QyUyQlZ3ZE4yN25xcHl5RTBVc0ZDaFhveEFaTDQ5NkElM0QlM0QmaW5TZXJpYWxObz0yMDI2MDMxMzg5MDMxMzQxMDAwN0Q2MjQyODI5MDY0Jm91dE9yZGVyTm89MjAyNjAzMTM4OTAzMTM0MTAwMDdENjI0MjgyOTA2NCIsImV4cCI6MTc3MzM2ODMxOSwiaWF0IjoxNzczMzY3NDE5LCJpc3MiOiI1ZDVmZGRlOGNjZWY3NjFhZDhiODJiNjgiLCJqdGkiOiIyMDI2MDMxMzg5MDMxMzQxMDAwN0Q2MjQyODI5MDY0In0.D1yRpHR9TwvCkBlcqtGSjpj9fjphqV_FGDnls8AnuoI\",\"Bin\":\"405469\",\"DDCFlag\":\"Y\"}",
        "redirectUrl": "https://iexpfront-sea.alipay.com/authorise3d?merchantId=1887SjzZ56b1lvObJWQTaqG4PhACjUGncnl0Sihzg8en5I%3D&ddcId=m47qH0MLK7A7yJNVdjLYJOlH5V9T9z53bmrgN8gJXC0%3D&pass=lt%5E1&needDDC=Y&from=iexpcore"
    },
    "result": {
        "resultCode": "PAYMENT_IN_PROCESS",
        "resultMessage": "payment in process",
        "resultStatus": "U"
    }
}

The table below shows the possible values of result.resultStatus in the response. Please handle the result according to the guidance provided:

Note: If no response is received, it may indicate a network timeout. You can call the inquiryPayment API to query the authorization result, or wait for the notifyPayment (Subscription) API to send asynchronous notifications.

Common questions

Q: Is 3D authentication mandatory for the first transaction?

A: The first transaction is a buyer-initiated transaction that requires identity verification to ensure the security of subsequent periodic deductions when the buyer is not present. Therefore, the following requirements apply to identity verification for the first transaction:

• Complete 3D authentication through Antom: When the buyer selects card payment and paymentMethodType is set to CARD, the 3DS authentication must be completed to verify the buyer’s identity. You can set the is3DSAuthentication parameterto true in the pay (One-time Payments) API request to complete the authentication through Antom 3DS.
• Complete 3D authentication through a third-party institution: In the server-to-server mode, after you collect the card information yourself and complete 3DS authentication through a third-party institution, you need to provide the mpiData.eci and mpiData.cavv parameters.

Step 3: Redirect to 3D authentication page (normalUrl) Client-side

After the merchant server obtains normalUrl from Antom and passes it to the frontend, it will redirect from the merchant frontend to the 3D authentication page.

The following is sample codes for the merchant front end to load normalUrl.

if (serverResponse.normalUrl != null) {
    window.open(serverResponse.normalUrl, '_blank');
}

window.location.href = URL;

// Initialize webview configuration
WKWebViewConfiguration *configuration = [[WKWebViewConfiguration alloc]init];
// Initialize webView
WKWebView *webView = [[WKWebView alloc]initWithFrame:CGRectMake(0, 0, [UIScreen mainScreen].bounds.size.width, [UIScreen mainScreen].bounds.size.height) configuration:configuration];
webView.navigationDelegate = self;
//Load the payment method URL
[webView loadRequest:[NSURLRequest requestWithURL:[NSURL URLWithString:Url]]];
[self.view addSubview:self.webView];

WebView webView = findViewById(R.id.webview);
//Set webview
webView.setWebViewClient(new WebViewClient() {
    @Override
    public boolean shouldOverrideUrlLoading(WebView view, WebResourceRequest request) {
        view.loadUrl(request.getUrl().toString());
        return super.shouldOverrideUrlLoading(view, request);
    }});

WebSettings webSettings = webView.getSettings();
//Enable javascript
webSettings.setJavaScriptEnabled(true);
//Enable scaling
webSettings.setSupportZoom(true);
//Enable scaling controls (buttons)
webSettings.setBuiltInZoomControls(true);
//Webview has two cache modes. Cache is not used here.
webSettings.setCacheMode(WebSettings.LOAD_NO_CACHE);
//Allow JavaScript to open a new tab (false by default)
webSettings.setJavaScriptCanOpenWindowsAutomatically(true);
//Allow JavaScript to load local storage
webSettings.setDomStorageEnabled(true);
//WAP cache size (settings are not needed)
//webSettings.setAppCacheMaxSize(1024 * 1024 * 8);
//WAP cache path
String absolutePath = getApplicationContext().getCacheDir().getAbsolutePath();
//WAP cache size
webSettings.setAppCachePath(absolutePath);
//Set whether to allow WebView to access files (true by default)
webSettings.setAllowFileAccess(true);
//Allow WAP cache to be saved
webSettings.setAppCacheEnabled(true);
//In preview mode, if the page width exceeds the WebView display, scale down the page to fit WebView (false by default)
webSettings.setLoadWithOverviewMode(true);
//Support the viewport HTML meta tag
webSettings.setUseWideViewPort(true);
//Load the payment method URL
webView.loadUrl(Url);

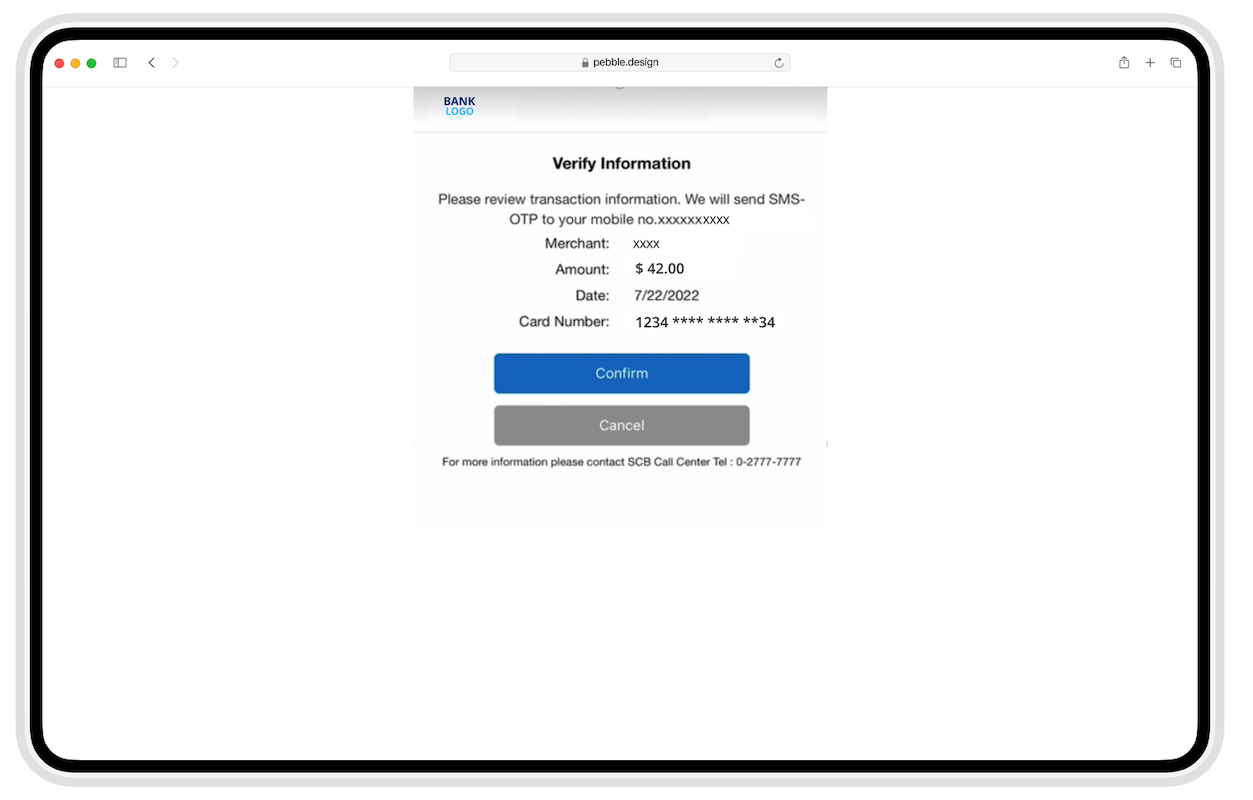

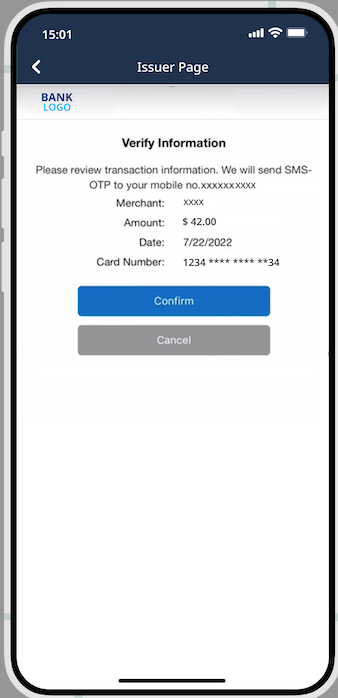

The following images demonstrate the user experience of redirecting to the 3D authentication page on Web or App platforms.

Web

App

Common questions

Q: How to handle different payment experiences?

A: The normalUrl  returned from card payments integrated via API is an H5 link. For WEB and WAP scenarios, you can directly redirect to this URL. For APP scenarios, it is recommended to load the normalUrl through a WebView to enhance the user experience.

Q: What should be noted when passing the paymentRedirectUrl parameter?

A: paymentRedirectUrl is set to an HTTPS address by default. Additionally, do not encode special characters in the URL, as this may cause abnormalities in the payment process.

Q: How should the payment result page be displayed?

A: You need to pass an HTTPS address via the paymentRedirectUrl parameter in the pay (One-time Payments)API request to display the payment result on the merchant side.Whether the subscription creation succeeds or fails, the buyer may return to the merchant page from the payment method side. Do not set paymentRedirectUrl to a fixed "subscription payment success page." Instead, you should the display result page based on the actual results returned by the server to avoid misleading the buyer.

Q: Does returning to the merchant result page indicate that the subscription payment was created successfully?

A: You cannot determine whether the subscription was created successfully solely based on the redirection to the merchant page. Key reasons include:

• After the buyer successfully creates a subscription payment, they may fail to return to the merchant page due to network abnormalities or other reasons.
• Even if the buyer does not complete the subscription payment, they may still return to the merchant page via the payment method side.
• Even if the buyer completes the subscription payment authentication, the subscription will not take effect if the initial deduction fails.

Step 4: Obtain the authorization result Server-side

Whether the authorization succeeds or fails, Antom will send the authorized payment result to you through the notifyPayment (Subscription) API. Please follow the steps below to obtain the authorized payment result notification.

1. Configure the webhook URL to receive asynchronous notifications: Set the paymentNotifyUrl parameter in the pay (One-time Payments) API request or configure the webhook URL in the Antom Dashboard.

The following code shows a sample of the asynchronous notification request:

{
  "notifyType": "PAYMENT_RESULT",
  "result": {
    "resultCode": "SUCCESS",
    "resultStatus": "S",
    "resultMessage": "success"
  },
  "paymentRequestId": "2020010123456789XXXX",
  "paymentId": "2020010123456789XXXX",
  "paymentAmount": {
    "value": "8000",
    "currency": "EUR"
  },
  "paymentCreateTime": "2020-01-01T12:01:00+08:30",
  "paymentTime": "2020-01-01T12:01:01+08:30"
}

2. Verify the asynchronous notification

If you receive an asynchronous notification from Antom, you are required to return the response in the Sample code format, but you do not need to countersign the response.

You need to verify the signature of the payment notification sent by Antom.

 /**
     * receive payment notify
     *
     * @param request    request
     * @param notifyBody notify body
     * @return Result
     */
    @PostMapping("/receivePaymentNotify")
    @ResponseBody
    public Result receivePaymentNotify(HttpServletRequest request, @RequestBody String notifyBody) {
        // retrieve the required parameters from http request
        String requestUri = request.getRequestURI();
        String requestMethod = request.getMethod();

        // retrieve the required parameters from request header
        String requestTime = request.getHeader("request-time");
        String clientId = request.getHeader("client-id");
        String signature = request.getHeader("signature");

        try {
            // verify the signature of notification
            boolean verifyResult = WebhookTool.checkSignature(requestUri, requestMethod, clientId,
                    requestTime, signature, notifyBody, ANTOM_PUBLIC_KEY);
            if (!verifyResult) {
                throw new RuntimeException("Invalid notify signature");
            }

            // deserialize the notification body
            AlipaySubscriptionPayNotify paymentNotify = JSON.parseObject(notifyBody, AlipaySubscriptionPayNotify.class);

            if (paymentNotify != null && "SUCCESS".equals(paymentNotify.getResult().getResultCode())) {
                // handle your own business logic.
                // e.g. The payment information of the user is saved through the relationship between the subscriptionRequestId and the user ID.
                System.out.println("receive payment notify: " + JSON.toJSONString(paymentNotify));
                return Result.builder().resultCode("SUCCESS").resultMessage("success.").resultStatus(ResultStatusType.S).build();
            }

        } catch (Exception e) {
            return Result.builder().resultCode("FAIL").resultMessage("fail.").resultStatus(ResultStatusType.F).build();
        }

        return Result.builder().resultCode("SYSTEM_ERROR").resultMessage("system error.").resultStatus(ResultStatusType.F).build();
    }

3. Respond to the notification result. When responding to the notification, you must follow the fixed format below regardless of whether the payment transaction succeeds or fails, and no signature processing is required.

{
    "result": {
        "resultCode": "SUCCESS",
        "resultStatus": "S",
        "resultMessage": "success"
    }
}

Step 5: Capture and obtain the capture result Server-side

Note: Capture will be triggered only when the authorized payment is successful.

If payment is successful, Antom will automatically initiate capture for you, while you can also initiate capture manually. Antom will send the capture result notification to you through the notifyCapture (One-time Payments) API, while you can also query the capture result. You need to decide whether to ship goods based on the capture result. For detailed steps, refer to Capture.

Step 6: Obtain subscription notifications Server-side

After the subscription becomes effective, Antom will send you the following subscription notifications:

• First-time subscription notification
• Subscription renewal notification

First-time subscription notification

Antom will send the following event notifications via HTTPS to the webhook you configured in the API or in the Antom Dashboard.

{
  "periodRule": {
    "periodCount": 1,
    "periodType": "MONTH"
  },
  "subscriptionEndTime": "2074-02-20T01:16:17-08:00",
  "subscriptionId": "20240914190000000000000050000010226",
  "subscriptionNotificationType": "CREATE",
  "subscriptionRequestId": "SUBSCRIPTION_202444091410165oo009851_AUTO",
  "subscriptionStartTime": "2024-09-13T19:30:17-07:00",
  "subscriptionStatus": "ACTIVE"
}

{
  "periodRule": {
    "periodCount": 1,
    "periodType": "WEEK"
  },
  "subscriptionId": "2025102619******00000160000671943",
  "subscriptionLastUpdateTime": "2025-10-26T09:51:13-07:00",
  "subscriptionNotificationType": "TERMINATE",
  "subscriptionRequestId": "PR_en_****176",
  "subscriptionStartTime": "2025-10-26T10:01:13-07:00",
  "subscriptionStatus": "TERMINATED"
}

/**
     * receive subscription notify
     *
     * @param request    request
     * @param notifyBody notify body
     * @return Result
     */
    @PostMapping("/receiveSubscriptionNotify")
    @ResponseBody
    public Result receiveSubscriptionNotify(HttpServletRequest request, @RequestBody String notifyBody) {
        // retrieve the required parameters from http request
        String requestUri = request.getRequestURI();
        String requestMethod = request.getMethod();

        // retrieve the required parameters from request header
        String requestTime = request.getHeader("request-time");
        String clientId = request.getHeader("client-id");
        String signature = request.getHeader("signature");

        try {
            // verify the signature of notification
            boolean verifyResult = WebhookTool.checkSignature(requestUri, requestMethod, clientId,
                    requestTime, signature, notifyBody, ANTOM_PUBLIC_KEY);
            if (!verifyResult) {
                throw new RuntimeException("Invalid notify signature");
            }

            // deserialize the notification body
            AlipaySubscriptionNotify subscriptionNotify = JSON.parseObject(notifyBody, AlipaySubscriptionNotify.class);

            if (subscriptionNotify != null && SubscriptionNotificationType.CREATE.equals(subscriptionNotify.getSubscriptionNotificationType())) {
                // handle your own business logic.
                // e.g. The subscription information of the user is saved through the relationship between the subscriptionRequestId and the user ID.
                System.out.println("receive subscription notify: " + JSON.toJSONString(subscriptionNotify));
                return Result.builder().resultCode("SUCCESS").resultMessage("success.").resultStatus(ResultStatusType.S).build();
            }

        } catch (Exception e) {
            return Result.builder().resultCode("FAIL").resultMessage("fail.").resultStatus(ResultStatusType.F).build();
        }

        return Result.builder().resultCode("SYSTEM_ERROR").resultMessage("system error.").resultStatus(ResultStatusType.F).build();
    }

{
    "result": {
        "resultCode": "SUCCESS",
        "resultStatus": "S",
        "resultMessage": "success"
    }
}

{
  "paymentAmount": {
    "currency": "PHP",
    "value": "100"
  },
  "notifyType": "PAYMENT_RESULT",
  "paymentCreateTime": "2024-09-17T23:10:48-07:00",
  "paymentId": "202409181940*****060246428030",
  "paymentTime": "2024-09-17T23:10:50-07:00",
  "periodEndTime": "2024-10-19T22:15:17-07:00",
  "periodStartTime": "2024-09-19T22:15:17-07:00",
  "phaseNo": "1",
  "result": {
    "resultCode": "SUCCESS",
    "resultMessage": "success",
    "resultStatus": "S"
  },
  "subscriptionId": "202409181900******00050000010807",
  "subscriptionRequestId": "SUBSCRIPTION_2*****yy5oo0hhh1_AUTO"
}

/**
     * receive payment notify
     *
     * @param request    request
     * @param notifyBody notify body
     * @return Result
     */
    @PostMapping("/receivePaymentNotify")
    @ResponseBody
    public Result receivePaymentNotify(HttpServletRequest request, @RequestBody String notifyBody) {
        // retrieve the required parameters from http request
        String requestUri = request.getRequestURI();
        String requestMethod = request.getMethod();

        // retrieve the required parameters from request header
        String requestTime = request.getHeader("request-time");
        String clientId = request.getHeader("client-id");
        String signature = request.getHeader("signature");

        try {
            // verify the signature of notification
            boolean verifyResult = WebhookTool.checkSignature(requestUri, requestMethod, clientId,
                    requestTime, signature, notifyBody, ANTOM_PUBLIC_KEY);
            if (!verifyResult) {
                throw new RuntimeException("通知签名无效");
            }

            // deserialize the notification body
            AlipaySubscriptionPayNotify paymentNotify = JSON.parseObject(notifyBody, AlipaySubscriptionPayNotify.class);

            if (paymentNotify != null && "SUCCESS".equals(paymentNotify.getResult().getResultCode())) {
                // handle your own business logic.
                // e.g. The payment information of the user is saved through the relationship between the subscriptionRequestId and the user ID.
                System.out.println("接收到支付通知: " + JSON.toJSONString(paymentNotify));
                return Result.builder().resultCode("SUCCESS").resultMessage("success.").resultStatus(ResultStatusType.S).build();
            }

        } catch (Exception e) {
            return Result.builder().resultCode("FAIL").resultMessage("fail.").resultStatus(ResultStatusType.F).build();
        }

        return Result.builder().resultCode("SYSTEM_ERROR").resultMessage("system error.").resultStatus(ResultStatusType.F).build();
    }

{
    "result": {
        "resultCode": "SUCCESS",
        "resultStatus": "S",
        "resultMessage": "success"
    }
}

Common questions

Q: Will the asynchronous notification be re-sent?

A: Yes, the asynchronous notification will be re-sent automatically within 24 hours for the following cases:

• If you didn't receive the asynchronous notification due to network reasons.
• If you receive an asynchronous notification from Antom, but you didn't make a response to the notification in the sample code format of Process the notification.

The notification can be resent up to 8 times or until a correct response is received to terminate delivery. The sending intervals are as follows: 0 minutes, 2 minutes, 10 minutes, 10 minutes, 1 hour, 2 hours, 6 hours, and 15 hours.

Q: Do I need to verify the signature after receiving the payment result notification?

A: Yes. To ensure that the callback request is indeed sent by Antom, verification is required during signature verification. When assembling messages to be verified, you are required to process in the following standard order: <http-method> <http-uri> <client-id>.<request-time>.<request-body>. Note that <request-body> should be assembled directly from the original value, rather than parsed into JSON and then assembled.

Q: If the first payment fails, will the subscription take effect?

A: When the first deduction during subscription activation fails, the subscription will not take effect. Antom will push a webhook notification with subscriptionStatus=TERMINATED to you, indicating that the subscription activation has failed.

Q: What is the subscription timeout period?

A: For card payments, the default timeout period is 7 days. You can also specify a timeout period through the subscriptionExpiryTime field.

Q: What are the differences between the current deduction result notification, the authorization notification, and the capture notification?

A: The authorized payment notification includes information related to 3DS authentication and other authorization details. The capture notification reflects the final payment result and is recommended as the basis for shipment. The current deduction result notification contains subscription cycle information, including the start time, end time, and period number of the current cycle.

Q: Can I initiate manual capture for the first payment of the subscription?

A: Yes. You need to set the value of the paymentFactor.captureMode field to MANUAL in the pay (One-time Payments) API, and then call the capture (One-time Payments) API manually after receiving the asynchronous notification of successful authorized payment. In this scenario, the first payment is only considered successful when the capture is successful, and only then will Antom generate the subsequent periodic deduction plan.

Subscription renewal notification

After the subscription is successfully created and has taken effect, the Antom system will automatically initiate renewal deductions based on the subscription rules you have configured, and send the corresponding payment result notifications through webhook to achieve periodic deductions. The timing and rules for triggering renewal deductions are as follows:

• Trigger timing: The renewal deduction will be automatically triggered 24 hours before the start date of the next subscription cycle. You can determine the initiation time of the next cycle’s payment by subtracting 24 hours from the periodEndTime parameter in the previous cycle’s payment result notification.
• Cycle rule: The renewal period and deduction frequency will follow the periodRule defined during subscription creation, for example, daily, monthly, quarterly, or yearly billing. The explanation is as follows:

Asynchronous notifications are generally divided into the following scenarios:

The following are sample codes for asynchronous notifications in each scenario:

{
  "notifyType": "PAYMENT_RESULT",
  "result": {
    "resultCode": "SUCCESS",
    "resultStatus": "S",
    "resultMessage": "success"
  },
  "paymentRequestId": "2020010123456789XXXX",
  "paymentId": "2020010123456789XXXX",
  "paymentAmount": {
    "value": "8000",
    "currency": "EUR"
  },
  "paymentCreateTime": "2020-01-01T12:01:00+08:30",
  "paymentTime": "2020-01-01T12:01:01+08:30"
}

{
    "captureAmount": {
        "currency": "USD",
        "value": "2000"
    },
    "captureId": "2024121219401080*****88670209694544",
    "captureRequestId": "4c6c8ffd-bc8c-41a5-bdc8-aeeb5af0****",
    "captureTime": "2024-12-11T23:34:03-08:00",
    "paymentId": "2024121219401****100188670211082739",
    "notifyType": "CAPTURE_RESULT",
    "result": {
        "resultCode": "SUCCESS",
        "resultMessage": "success.",
        "resultStatus": "S"
    }
}

{
  "paymentAmount": {
    "currency": "PHP",
    "value": "100"
  },
  "notifyType": "PAYMENT_RESULT",
  "paymentCreateTime": "2024-09-17T23:10:48-07:00",
  "paymentId": "20240918194010800100188060246428030",
  "paymentTime": "2024-09-17T23:10:50-07:00",
  "periodEndTime": "2024-10-19T22:15:17-07:00",
  "periodStartTime": "2024-09-19T22:15:17-07:00",
  "phaseNo": "2",
  "result": {
    "resultCode": "SUCCESS",
    "resultMessage": "success",
    "resultStatus": "S"
  },
  "subscriptionId": "20240918190000000000000050000010807",
  "subscriptionRequestId": "SUBSCRIPTION_20244jj09yyy5oo0hhh1_AUTO"
}

Common questions

Q: If a payment deduction fails, will it cause the subscription to become invalid?

A: If the first deduction when creating a subscription fails, the subscription will not take effect. However, if the subscription has already taken effect and subsequent cycle deductions fail (for example, due to insufficient balance), the subscription will remain valid. If the subscription is not actively canceled, Antom will retry the deduction in the next billing cycle.

Q: Will a payment failure trigger a deduction notification, and will it be retried?

A: A deduction failure notification will be sent when the deduction fails. In card recurring payment scenarios, Antom will not initiate a retry. If you need to initiate a retry, please contact Antom technical support for a customized solution.

Q: If the first deduction occurs on dates such as February 28, March 31, or April 30 (the end of the month), how is the next deduction date determined?

A: The subscription cycle logic is based on the selected date. If the next cycle does not have that same date, the deduction will occur one day earlier. For example:

• First cycle: 1.28, Second cycle: 2.28, Third cycle: 3.28, Fourth cycle: 4.28.
• First cycle: 1.31, Second cycle: 2.28, Third cycle: 3.31, Fourth cycle: 4.30.
• First cycle: 1.30, Second cycle: 2.28, Third cycle: 3.30, Fourth cycle: 4.30.

Q: How are subsequent recurring deductions associated with the initial subscription?

A: For recurring deduction notifications, the association can be made using the subscriptionRequestId or subscriptionId included in the notification request to link back to the initial subscription. For recurring deductions in card payment scenarios, Antom will additionally send authorization result notifications and capture result notifications. These two notifications can be linked to the recurring deduction notification through paymentId, and ultimately associated with the initial subscription’s subscriptionId.

Q: For card payments, if I initiate the capture manually when the subscription is first created (by setting paymentFactor.captureMode to MANUAL), how will subsequent automatic deduction be handled?

A: All subsequent automatic renewals are initiated by Antom without merchant involvement in the capture process, which means the value of the paymentFactor.captureMode parameter defaults to AUTOMATIC.

After subscription

After completing the subscription, you can perform the following actions:

Subscription trial

Antom provides a subscription trial feature that allows buyers to experience a product or service for a limited time at no cost or at a discounted rate before officially purchasing a subscription plan.
For more details, please refer to the Subscription trial.

Subscription cancellation

The subscription cancellation feature allows buyers to cancel their current subscription at any time when they no longer need to use the associated service. For more details, please refer to the Subscription cancellation.

Cancellation Server-side

For successful payments, if the buyer requests cancellation or a refund on the same day, you can use Antom’s cancellation capability to cancel the order or release funds. Orders not yet completed can also be cancelled directly. For details, refer to Cancel.

Refund Server-side

For successfully paid orders, if you need to issue a refund to the buyer, Antom provides two methods:

• Your operations staff can manually process refunds directly through the Antom Dashboard.
• Call the refund API to initiate a refund.

Antom’s refund capabilities are as follows:

• Supports full refunds.
• Supports multiple partial refunds, with the total refunded amount not exceeding the captured amount.

Refer to Refund to learn about Antom refund rules and operation process.

Best practices

Antom provides you with the following best practice solutions:

• Payment result display
• API timeout settings
