Accept payments with Apple Pay

Through the Apple Pay service, buyers can make payments using credit or debit cards stored in their Apple accounts. With Antom Checkout Page (CKP), you do not need to integrate the Apple Pay SDK separately. Checkout Page will automatically load Apple Pay services for you and can be configured to support Apple Pay as an express payment method.

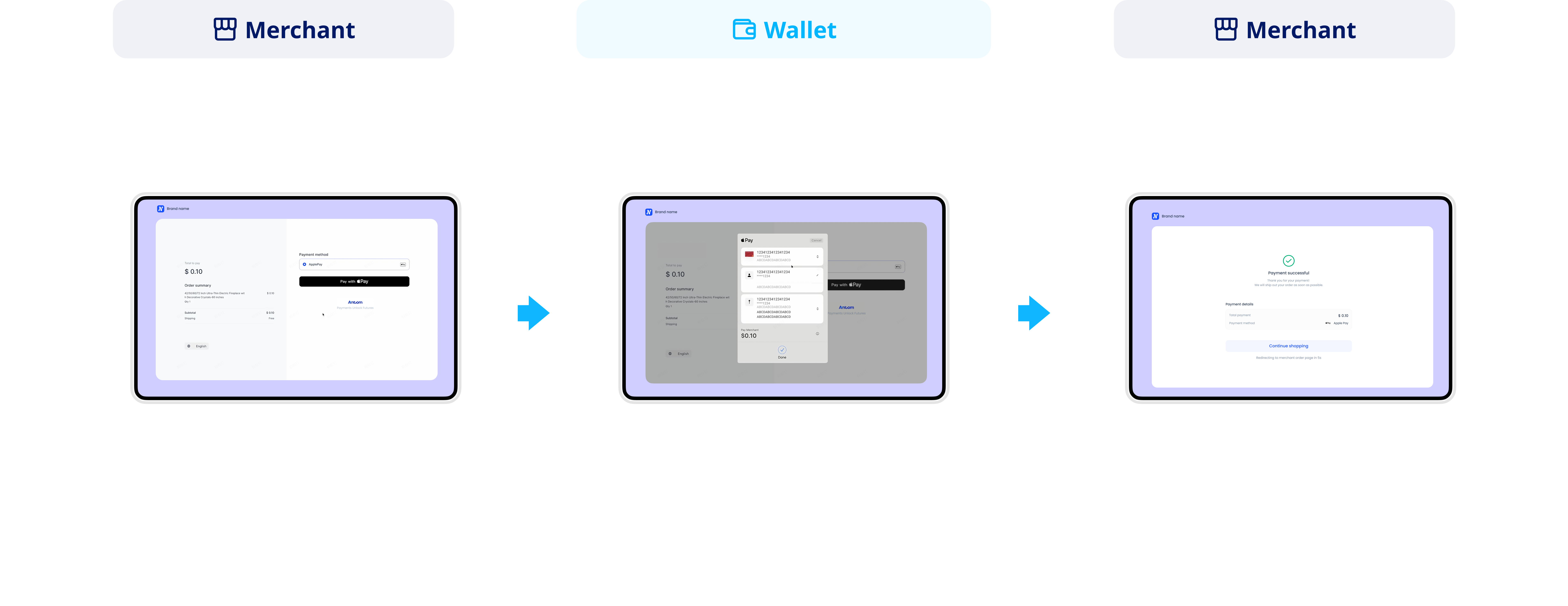

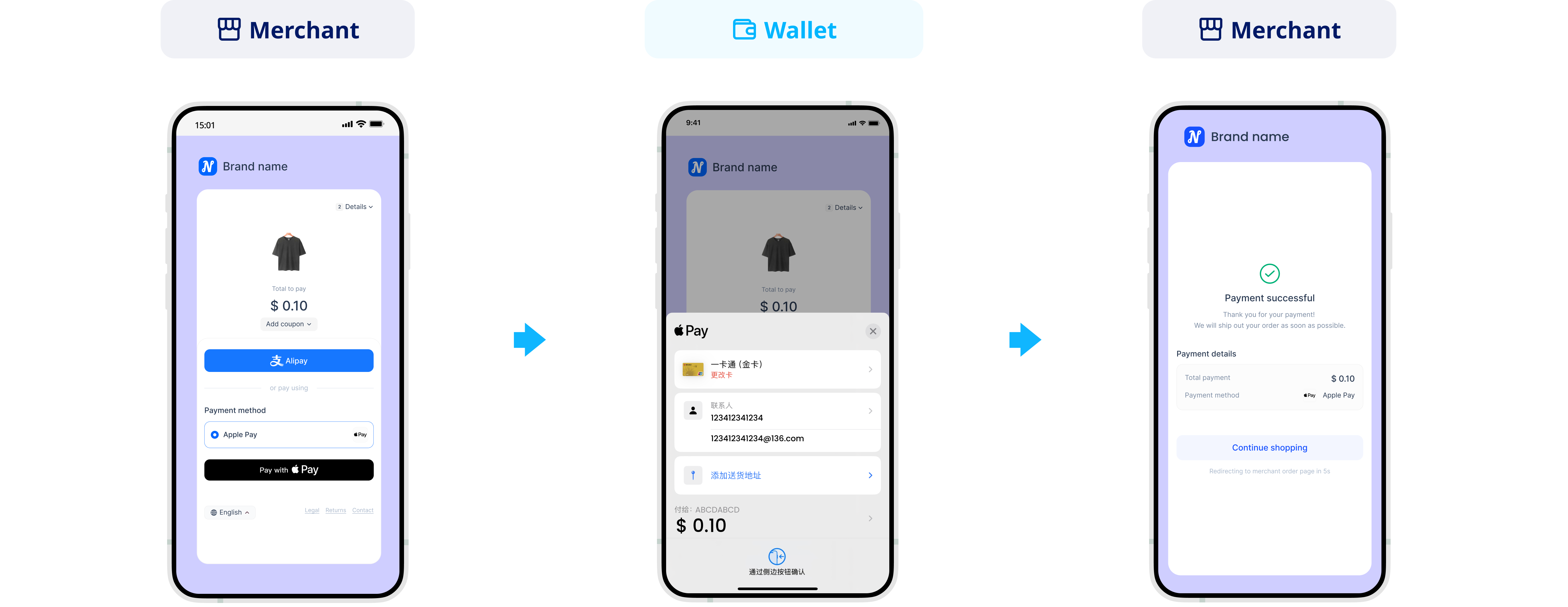

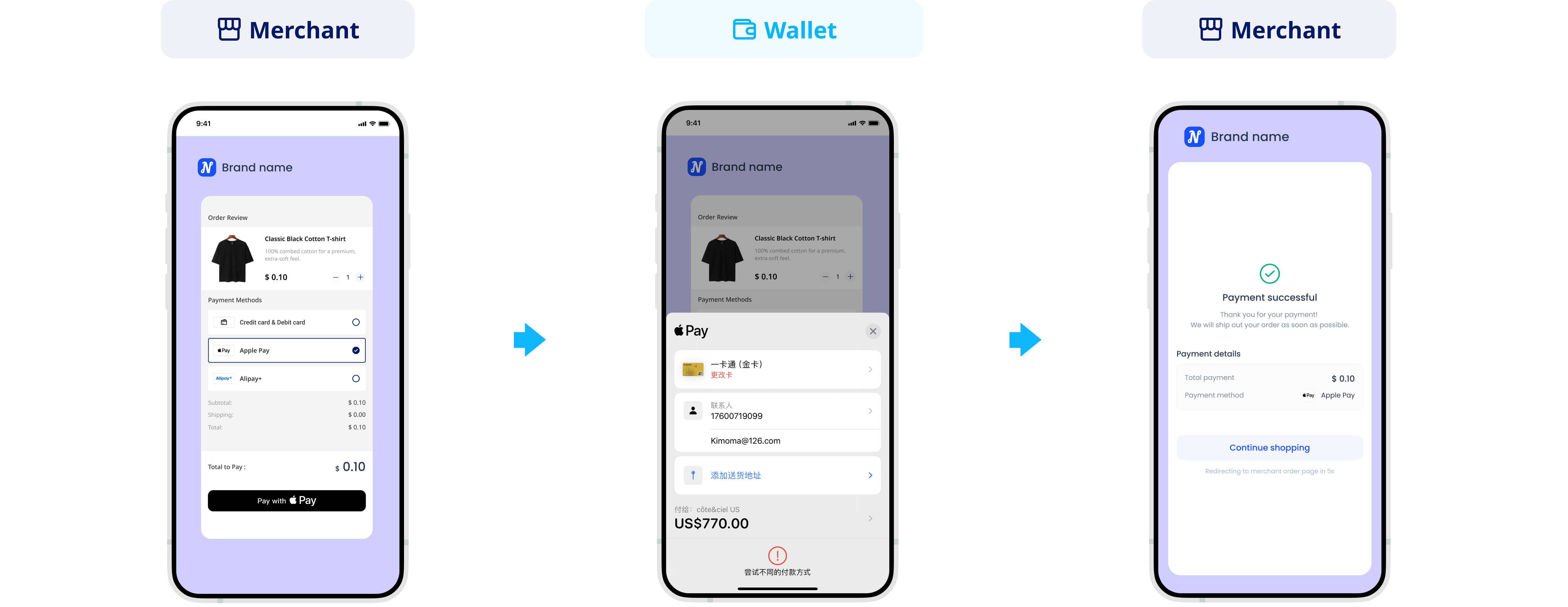

User experience

Integration preparations

1. Antom provides pre-configured Apple Pay merchant certification for quick integration. Follow the steps below to complete the certification:

1. Provide the server domain name DOMAIN_NAME used for receiving payments to Antom Technical Support.
2. Contact Antom Technical Support to obtain the Apple Pay domain verification file and place it in the following server directory:

https://[DOMAIN_NAME]/.well-known/apple-developer-merchantid-domain-association

2. Before you start integrating, read the Integration Guide and API Overview documents to understand the integration steps of the server-side API and the precautions for calling the API. Furthermore, ensure that the following prerequisites are met:

   • Obtain a client ID
   • Complete the key configuration
   • Complete the configuration of paymentNotifyUrl to receive the asynchronous notification
   • Integrate the server-side SDK package, install the server-side library, and initialize a request instance. For more details, refer to Server-side SDKs.
   • Refer to Integrate the SDK package for Web/WAP to complete integration preparations, and ensure to use SDK 1.41.0 or above.

Integration steps

Follow these steps to start the integration:

1. Create a payment session
2. Embed Antom Checkout Page
3. Obtain the payment result
4. Initiate capture

Step 1: Create a payment session Server-side

Follow Step 1: Create a payment session to call the createPaymentSession (One-time Payments) API and pass in the order information to create a payment session and redirect to the Antom Checkout Page. At the same time, you need to pass in the following parameters:

The following shows the sample code of a request:

{
  "order": {
    "buyer": {
      "referenceBuyerId": "yourBuyerId"
    },
    "goods": [
      {
        "goodsBrand": "Antom Brand",
        "goodsCategory": "outdoor goods/bag",
        "goodsImageUrl": "https://mdn.alipayobjects.com/portal_pdqp4x/afts/file/A*H8M9RrxlArAAAAAAAAAAAAAAAQAAAQ",
        "goodsName": "Classic Woman Bag",
        "goodsQuantity": "1",
        "goodsSkuName": "Black",
        "goodsUnitAmount": {
          "currency": "SGD",
          "value": "6000"
        },
        "goodsUrl": "https://yourGoodsUrl",
        "referenceGoodsId": "yourGoodsId"
      }
    ],
    "orderAmount": {
      "currency": "SGD",
      "value": "6000"
    },
    "orderDescription": "antom ckp testing order",
    "referenceOrderId": "c3df9b82-ff67-424b-880b-06c3615b46ea"
  },
  "paymentAmount": {
    "currency": "SGD",
    "value": "6000"
  },
  "availablePaymentMethod": {
    "paymentMethodTypeList": [
      {
        "paymentMethodType": "APPLEPAY",
        "expressCheckout": true,
        "paymentMethodOrder": 0
      }
    ]
  },
  "paymentNotifyUrl": "http://www.yourNotifyUrl.com/payment/receiveNotify",
  "paymentRedirectUrl": "http://localhost:8080/index.html?paymentRequestId=597795b7-c812-4132-bd7d-c55914eefdcb",
  "paymentRequestId": "597795b7-c812-4132-bd7d-c55914eefdcb",
  "productCode": "CASHIER_PAYMENT",
  "productScene": "CHECKOUT_PAYMENT"
}

Step 2: Embed Antom Checkout Page Client-side

The Antom SDK is a component used for handling payment processes. To collect information and switch between apps based on the payment method specified in the createPaymentSession (One-time Payments) API, you need to initiate the SDK by creating a payment session. For details, please refer to Step 2: Embed Antom Checkout Page.

Step 3: Obtain the payment result Server-side

After the buyer completes payment or the payment times out, you can obtain the payment result either by receiving asynchronous notifications from Antom or by proactively querying the result. For detailed steps, refer to Process asynchronous notifications and Inquire payments.

Step 4: Capture Server-side

If payment is successful, Antom will automatically initiate capture for you, while you can also initiate capture manually. After capture, you can obtain the capture result either via asynchronous notification or active query. You should decide whether to ship goods based on the capture result. For specific operations, refer to Capture.

After payments

After completing the payment, you can perform the following actions:

Refund Server-side

To learn about Antom refund rules and how to initiate a refund for a successful transaction, see Refund for more information.

Dispute Server-side

When a buyer chooses to pay with a card, a dispute may occur. To learn more, see Dispute.

Reconciliation Server-side

After the transaction is completed, use the financial reports provided by Antom for reconciliation. For more information on how to reconcile and the settlement rules of Antom, please refer to Reconciliation.

Additional content

Card payment features

Card payment features also apply to Apple Pay. The following table outlines the support status of these features for Apple Pay:

Specify a payment method

You can specify payment methods on Antom Dashboard through Payments > Checkout page > Payment methods. You can also pass the parameters in the createPaymentSession (One-time Payments) API to specify the display of payment methods on Checkout Page, the order of the payment method list, and the display of express payments.

Note: If you pass parameters through the API, the API values take priority.

This feature offers you the following benefits:

• Filter local payment methods based on your business region.
• Sort your preferred payment methods.
• Display the mainstream quick payments, such as Alipay, Apple Pay, and Google Pay.


To specify Apple Pay as the only payment method, pass the following parameters in the availablePaymentMethod parameter of the createPaymentSession (One-time Payments) API:

The following is a sample code for specifying Apple Pay as the only payment method:

{
  "availablePaymentMethod": {
    "paymentMethodTypeList": [
      {
        "paymentMethodType": "APPLEPAY",
        "expressCheckout": true,
        "paymentMethodOrder": "0"
      }
    ]
  }
}
