This article describes how to integrate card payment methods through the hosted mode. The hosted mode protects you from the requirements of PCI-DSS compliance by ensuring that sensitive buyer payment data does not pass through or get stored on your servers. This eliminates security risks and data breach concerns. Additionally, you do not need to undergo separate PCI compliance certification, reducing operational and technical costs while improving deployment efficiency for your payment system.

In the hosted mode, APO generates and provides you with a user-friendly payment information collection page. During the payment process, buyers are securely redirected to this page to input their payment details. Once the information is submitted, APO processes it securely and converts it into an encrypted card token (cardToken). This card token acts as a secure reference to the payment card information and can be used in subsequent payment processes. With the hosted mode, you avoid direct contact with buyers' payment data while delivering a seamless and reliable payment experience that ensures both security and compliance.

User experience

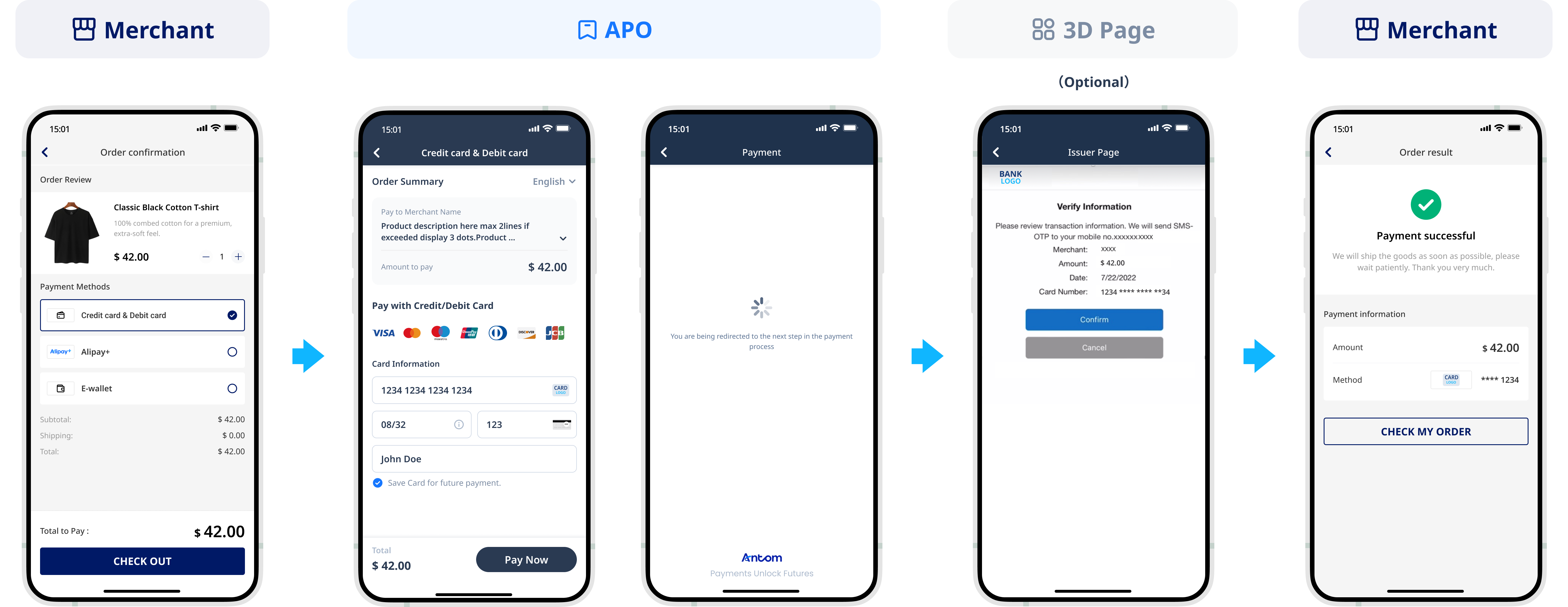

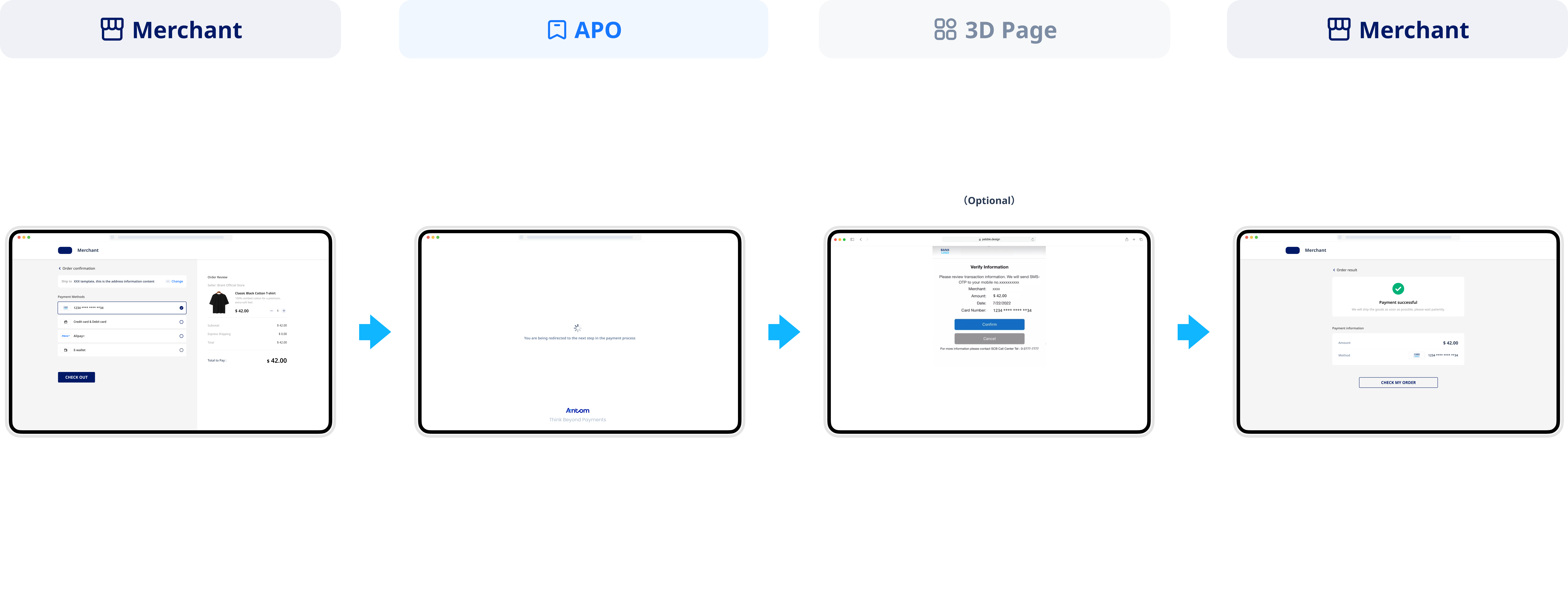

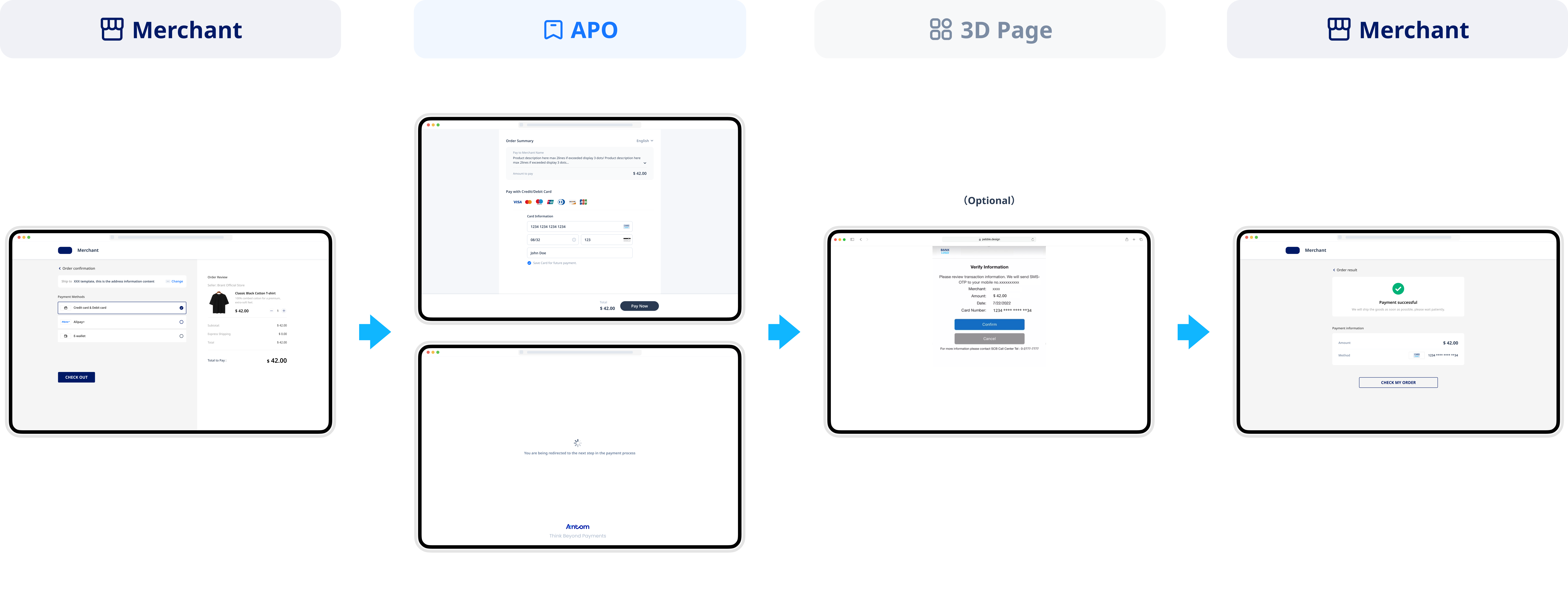

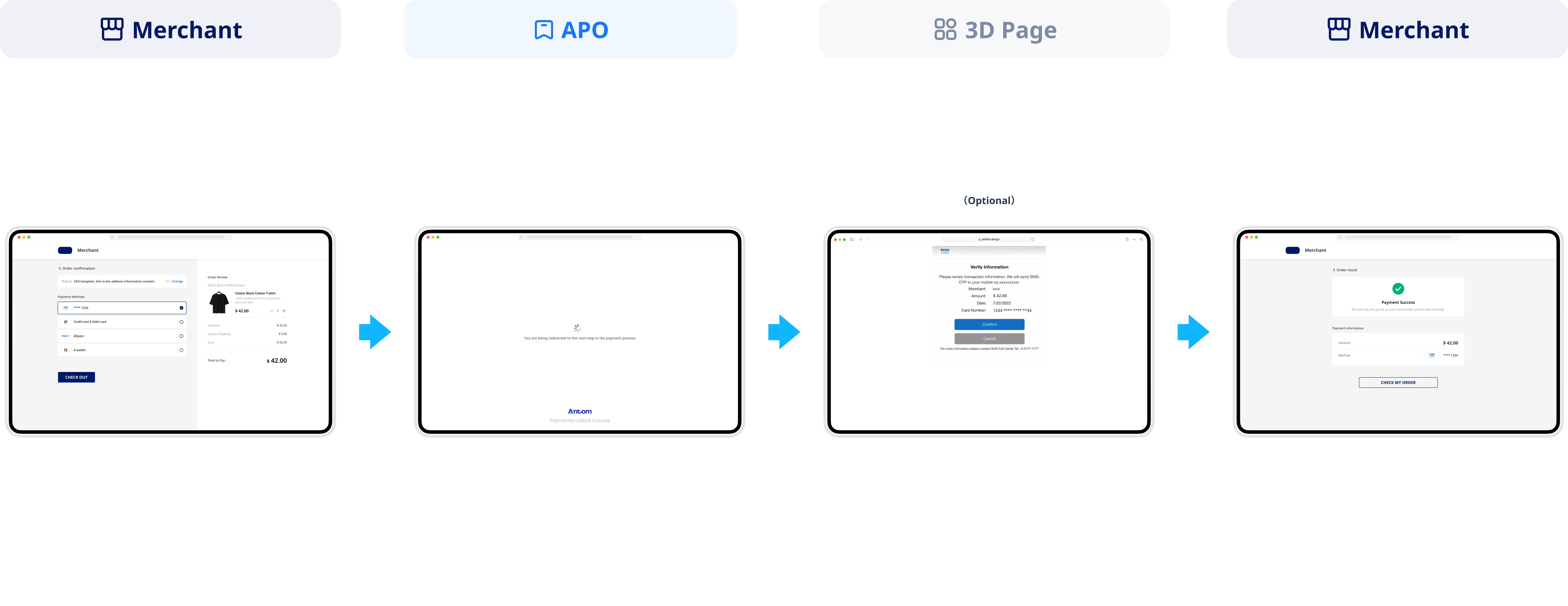

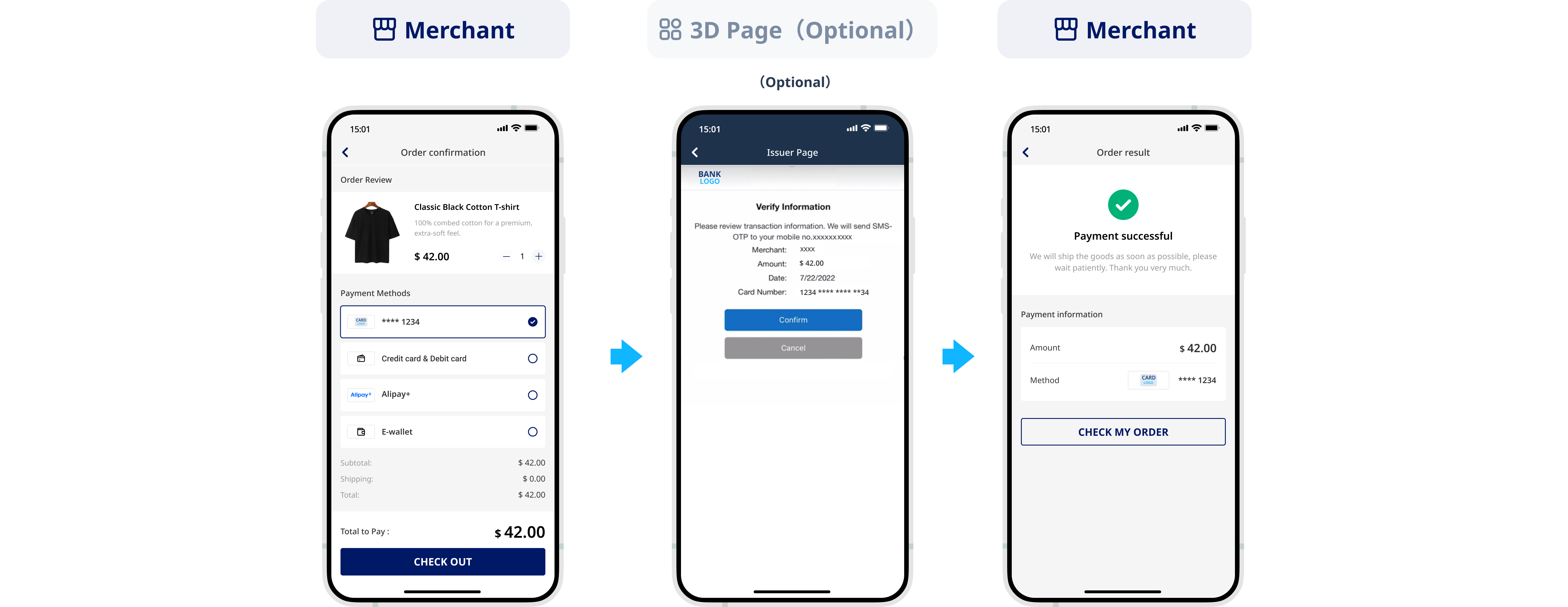

The following figures show the user experience in the first-time and saved card payments.

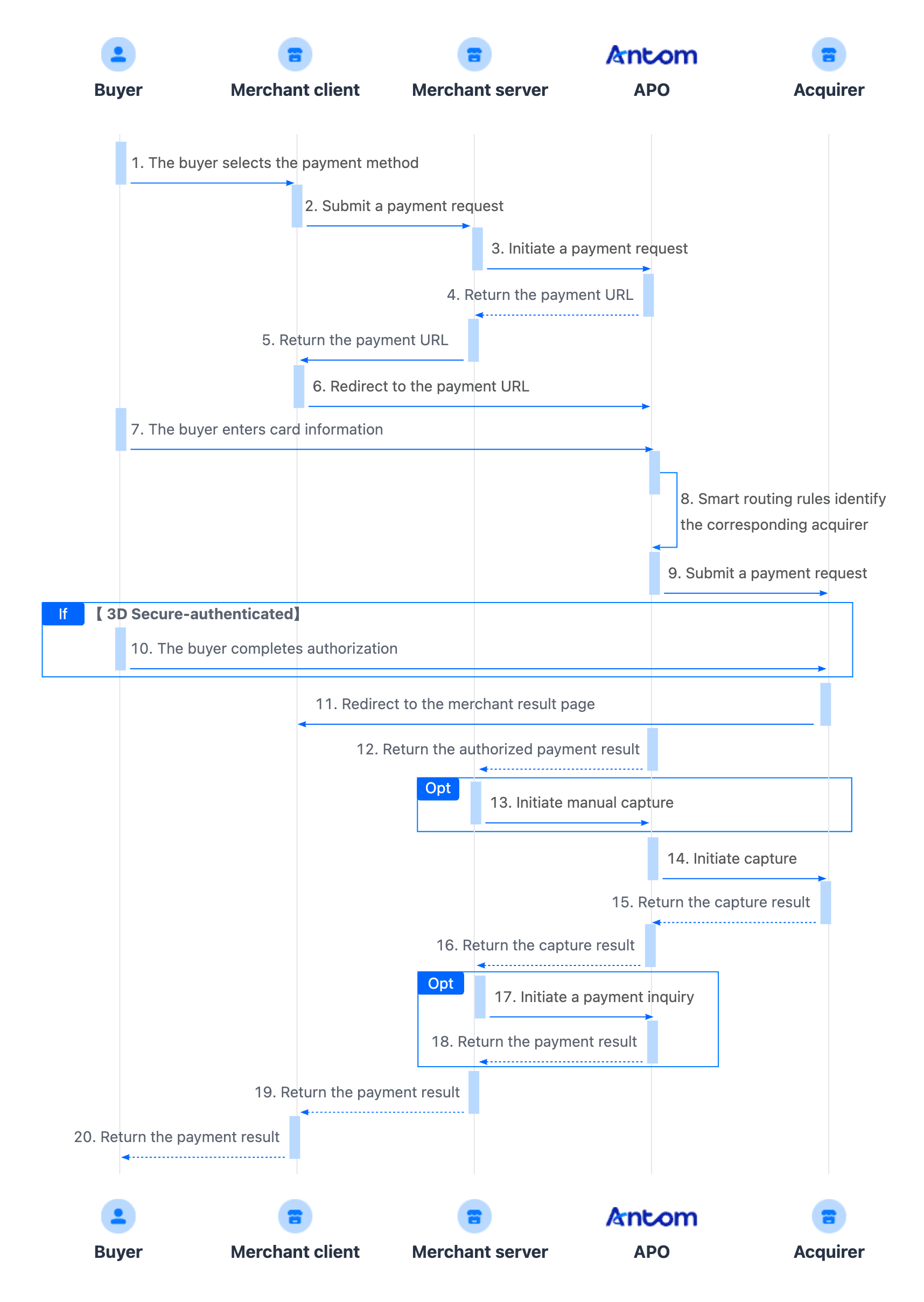

First-time payments

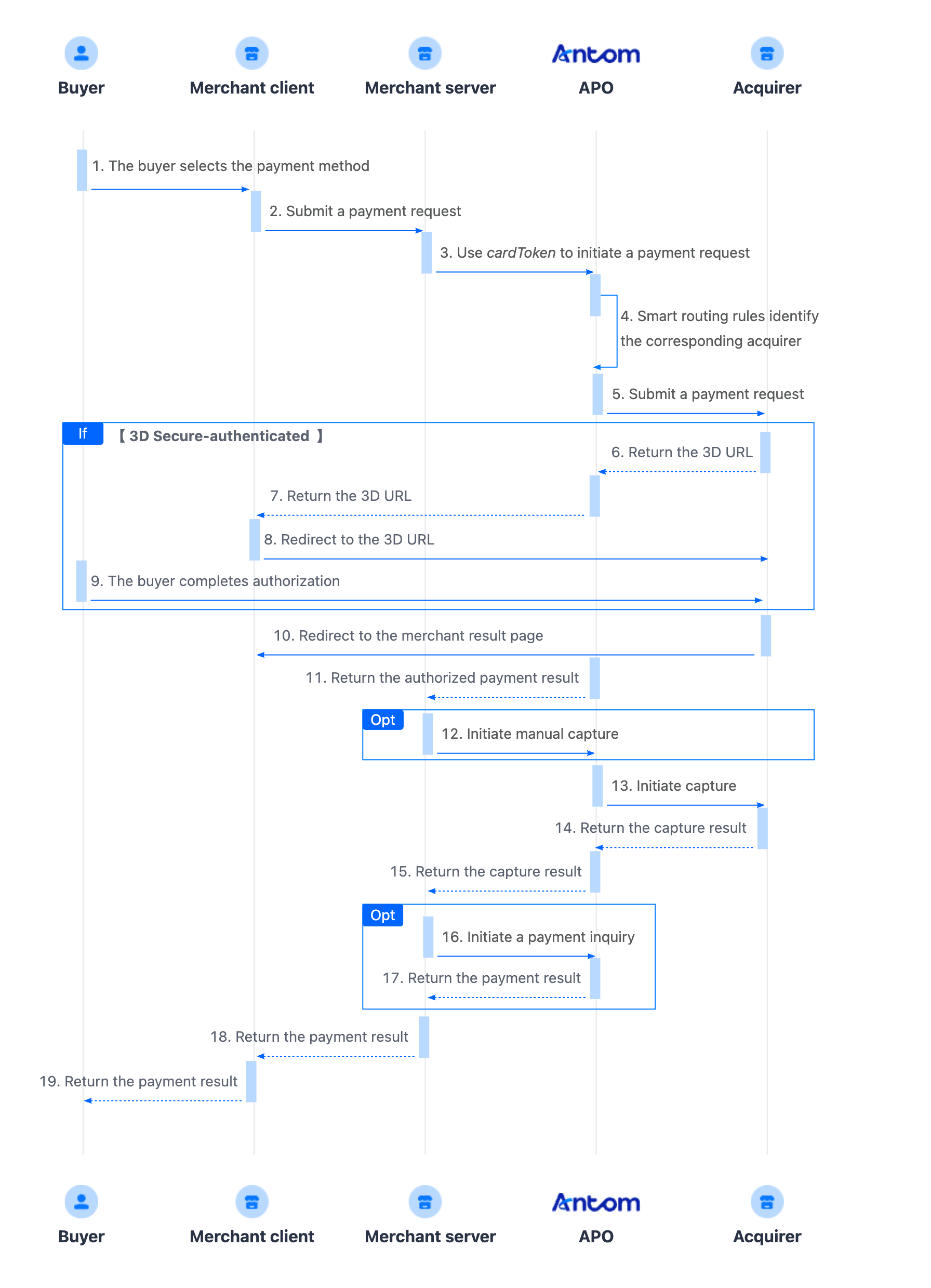

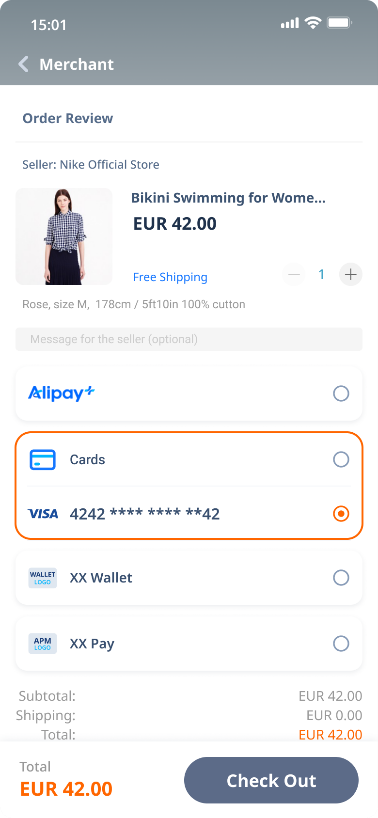

Saved card payments

Payment flow

For card payments with the hosted mode, the payment flow is composed of the following steps.

Note: If you activated the same payment method with multiple acquirers, you can configure payment routing rules on APO Dashboard. If no payment routing rules are set, APO will use random routing rules.

Integration prerequisites

Integrate the APO server-side SDK package, install the server-side library and initialize a request instance. For more details, refer to Server-side SDKs.

Integration steps

Most card payments follow the general payment flow and integration process provided by APO. Start your integration by taking the following steps.

1. Display the payment methods
2. Authorize a payment
3. (Optional) Redirect to the payment continuation URL
4. Obtain the authorized payment result
5. Capture and obtain the capture result

Note: For South Korean cards, issuer-authentication and non-authentication payment types exist. Non-authentication payments of South Korean cards follow the general card payment process. However, issuer-authentication payments of South Korean cards involve additional actions.

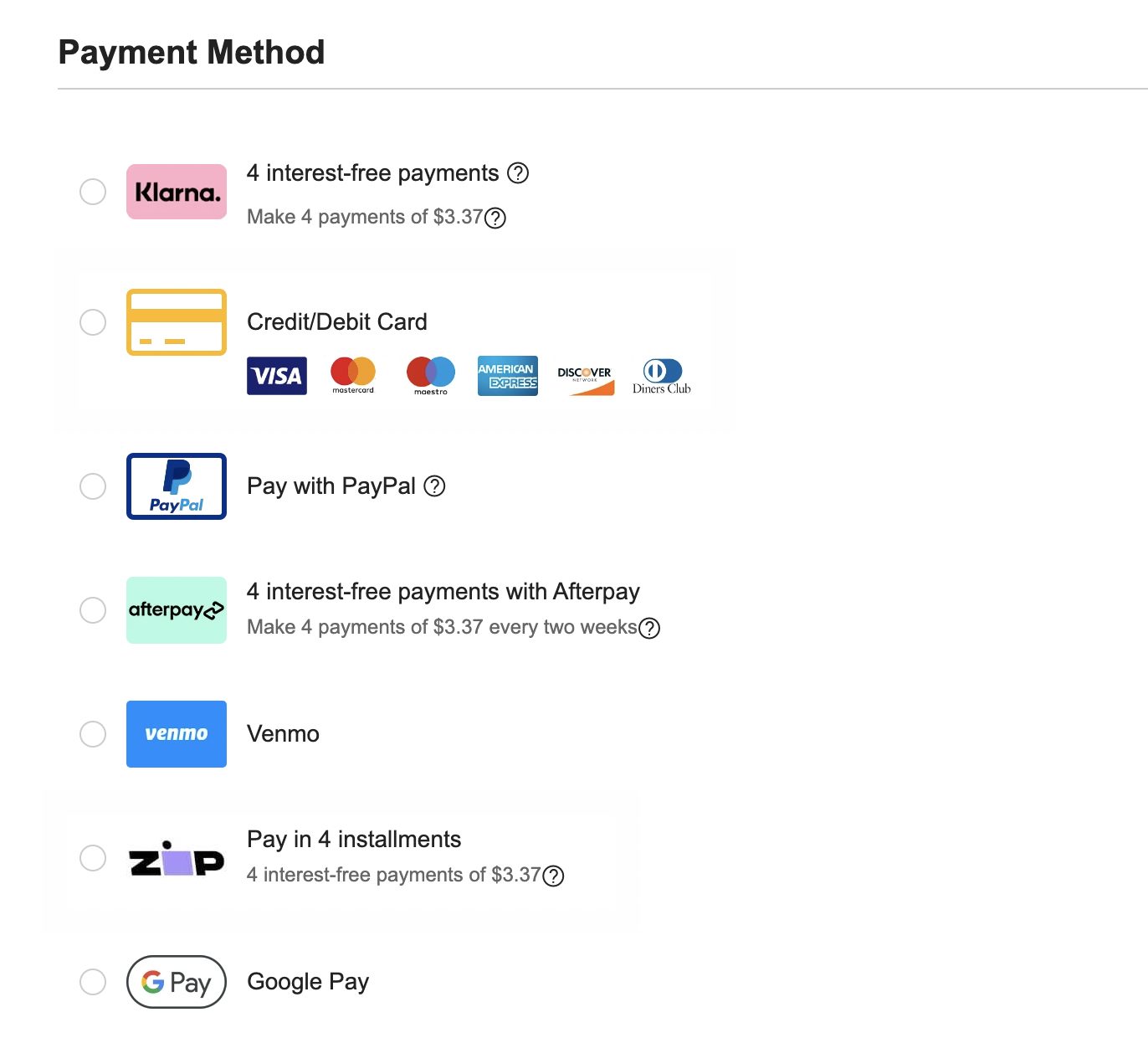

Step 1: Display payment methods Client-side

Step 2: Authorize a payment Server-side

When the buyer selects a payment method, you need to collect the key order information, such as the buyer's payment method information, order information, device information, and payment amount. Call the pay API, and submit an authorization request for payment.

1. Call the pay API

The following sample code shows how to call the pay API:

public static void payByCard() {
    AlipayPayRequest alipayPayRequest = new AlipayPayRequest();
    alipayPayRequest.setProductCode(ProductCodeType.CASHIER_PAYMENT);

    // replace with your paymentRequestId
    String paymentRequestId = UUID.randomUUID().toString();
    alipayPayRequest.setPaymentRequestId(paymentRequestId);

    // set amount
    Amount amount = Amount.builder().currency("SGD").value("4200").build();
    alipayPayRequest.setPaymentAmount(amount);

    // set payment methods
    PaymentMethod paymentMethod = PaymentMethod.builder().paymentMethodType("CARD").build();
    alipayPayRequest.setPaymentMethod(paymentMethod);

    // card info
    Map<String, Object> paymentMethodMetaData = new HashMap<String, Object>();
     paymentMethodMetaData.put("tokenizeMode", ASKFORCONSENT);
     paymentMethod.setPaymentMethodMetaData(paymentMethodMetaData);

    // replace with your orderId
    String orderId = UUID.randomUUID().toString();

    // set buyer info
    Buyer buyer = Buyer.builder().referenceBuyerId("yourBuyerId").build();

    // set order info
    Order order = Order.builder().referenceOrderId(orderId)
        .orderDescription("antom testing order").orderAmount(amount).buyer(buyer).build();
    alipayPayRequest.setOrder(order);

    // set env info
    Env env = Env.builder().terminalType(TerminalType.WEB).clientIp("1.2.3.4").build();
    alipayPayRequest.setEnv(env);

    // set auth capture payment mode
    PaymentFactor paymentFactor = PaymentFactor.builder().isAuthorization(true).build();
    alipayPayRequest.setPaymentFactor(paymentFactor);

    // replace with your notify url
    alipayPayRequest.setPaymentNotifyUrl("https://www.yourNotifyUrl.com");

    // replace with your redirect url
    alipayPayRequest.setPaymentRedirectUrl("https://www.yourMerchantWeb.com");

    // do payment
    AlipayPayResponse alipayPayResponse = null;
    try {
        alipayPayResponse = CLIENT.execute(alipayPayRequest);
    } catch (AlipayApiException e) {
        String errorMsg = e.getMessage();
        // handle error condition
    }
}

2. Create a payment request

Initiating a payment request involves the following key parameters:

For more information about all parameters, refer to the pay API.

The following shows the sample code of a payment request:

{
  "env": {
    "clientIp": "112.80.248.78",
    "deviceId": "eYOIkvFpZzztgO0Yu6USdprBQZCWxDhiUAHCiK8K/cH9mT6wMaMO****",
    "deviceLanguage": "zh_CN",
    "terminalType": "WEB"
  },
  "order": {
    "buyer": {
      "buyerEmail": "alipay@alipay.com",
      "buyerName": {
        "firstName": "Dehua",
        "fullName": "Dehua Skr Liu",
        "lastName": "Liu",
        "middleName": "Skr"
      },
      "buyerPhoneNo": "1234567****",
      "referenceBuyerId": "test1234****"
    },
    "orderAmount": {
      "currency": "HKD",
      "value": "30000"
    },
    "orderDescription": "Cappuccino #grande (Mika's coffee shop)",
    "referenceOrderId": "ORDER_2022111414171****"
  },
  "paymentAmount": {
    "currency": "HKD",
    "value": "30000"
  },
  "paymentFactor": {
    "isAuthorization": true
  },
  "paymentMethod": {
    "paymentMethodType": "CARD"
  },
  "paymentNotifyUrl": "https://www.alipay.com/notify",
  "paymentRedirectUrl": "https://www.alipay.com",
  "paymentRequestId": "13eIlShXoOg0S9jd3pMWzg3iOBwoXCv1YuEUy****",
  "productCode": "CASHIER_PAYMENT",
  "settlementStrategy": {
    "settlementCurrency": "EUR"
  }
}

{
  "order": {
    "orderAmount": {
      "currency": "HKD",
      "value": "30000"
    },
    "orderDescription": "《Bad Romance》-Lady Gaga",
    "referenceOrderId": "ORDER_2025051514581****",
    "goods": [
      {
        "goodsCategory": "Digital Goods",
        "goodsName": "《Bad Romance》",
        "goodsQuantity": "1",
        "goodsUnitAmount": {
          "currency": "HKD",
          "value": "30000"
        },
        "goodsUrl": "https://www.youtube.com/watch?v=QdaG6pDOz5A",
        "referenceGoodsId": "GOODS_2025051514581****"
      }
    ],
    "shipping": {
      "shippingName": {
        "firstName": "lady",
        "fullName": "lady gaga",
        "lastName": "gaga"
      },
      "shippingPhoneNo": "123456789"
    },
    "buyer": {
      "buyerEmail": "gaga@gaga.com",
      "buyerName": {
        "firstName": "lady",
        "fullName": "lady gaga",
        "lastName": "gaga"
      },
      "buyerPhoneNo": "123456789",
      "referenceBuyerId": "88888888"
    }
  },
  "env": {
    "terminalType": "WAP",
    "osType": "ANDROID",
    "clientIp": "112.80.248.78",
    "deviceId": "eYOIkvFpZzztgO0Yu6USdprBQZCWxDhiUAHCiK8K/cH9mT6wMaMO****",
    "deviceLanguage": "zh_CN"
  },
  "paymentAmount": {
    "currency": "HKD",
    "value": "30000"
  },
  "paymentMethod": {
    "paymentMethodType": "CARD",
    "paymentMethodMetaData": {
      "isCardOnFile": true
    },
    "paymentMethodId": "cardToken  XXXXXXXXXXXXXXXXXXXXXX"
  },
  "settlementStrategy": {
    "settlementCurrency": "USD"
  },
  "paymentNotifyUrl": "https://kademo.intlalipay.cn/payments/notifySuccess",
  "paymentRedirectUrl": "https://kademo.intlalipay.cn/melitigo/Test_114.html",
  "paymentRequestId": "PAY_2025051514581****",
  "productCode": "CASHIER_PAYMENT",
  "paymentFactor": {
    "isAuthorization": true
  }
}

The following shows the sample codes of a response for partial scenarios:

{
  "authExpiryTime": "2025-02-27T15:15:57+08:00",
  "normalUrl": "https://ac.alipay.com/page/sandbox/stone-infostaging.html?paymentId=20250220194010800190188000014991264&code=golcashier99ed8d93-efcf-4fe7-b9a1-4bb1152d6ad4sandbox&golSandbox=true&pspName=CARD&county=SG",
  "paymentActionForm": "{\"method\":\"GET\",\"paymentActionFormType\":\"RedirectActionForm\",\"redirectUrl\":\"https://ac.alipay.com/page/sandbox/stone-infostaging.html?paymentId=20250220194010800190188000014991264&code=golcashier99ed8d93-efcf-4fe7-b9a1-4bb1152d6ad4sandbox&golSandbox=true&pspName=CARD&county=SG\"}",
  "paymentAmount": {
    "currency": "HKD",
    "value": "30000"
  },
  "paymentCreateTime": "2025-02-20T15:15:57+08:00",
  "paymentId": "2025022019401080019018800001499****",
  "paymentRequestId": "13eIlShnRH5mKYtqFa2kvfht2IXdx1XoOg0S9jd3pMWzg3iOBwoXCv1YuEUy****",
  "redirectActionForm": {
    "method": "GET",
    "redirectUrl": "https://ac.alipay.com/page/sandbox/stone-infostaging.html?paymentId=20250220194010800190188000014991264&code=golcashier99ed8d93-efcf-4fe7-b9a1-4bb1152d6ad4sandbox&golSandbox=true&pspName=CARD&county=SG"
  },
  "result": {
    "resultCode": "PAYMENT_IN_PROCESS",
    "resultMessage": "Payment is processing.",
    "resultStatus": "U"
  }
}

{
  "result": {
    "resultCode": "RISK_REJECT",
    "resultMessage": "The transaction cannot be further processed because of security reasons. If the user has already paid for the transaction, the transaction will be refunded.",
    "resultStatus": "F"
  }
}

{
    "result": {
        "resultCode": "PAYMENT_IN_PROCESS",
        "resultMessage": "payment in process",
        "resultStatus": "U"
    }
}

The table shows the possible values that the result.resultStatus parameter in the response message may return. Please handle the result according to the guidances:

Note: If you did not receive a response message, it might be due to a network timeout. You can call the inquiryPayment API to retrieve the payment result, or wait for the asynchronous payment result notifications.

Step 3: (Optional) Redirect to the payment continuation URL Client-side

After the merchant server obtains normalUrl and passes it to the frontend, it will redirect from the merchant frontend to the APO normalUrl.

if (serverResponse.normalUrl != null) {
    window.open(serverResponse.normalUrl, '_blank');
}

window.location.href = URL;

if ([[[UIDevice currentDevice] systemVersion] floatValue] >= 10.0) {
    [[UIApplication sharedApplication] openURL:[NSURL URLWithString:Url] options:@{} completionHandler:nil];
}else{
    [[UIApplication sharedApplication] openURL:[NSURL URLWithString:Url]];
}

try {
    Intent intent = new Intent(Intent.ACTION_VIEW, Uri.parse(Url));
    intent.addFlags(Intent.FLAG_ACTIVITY_NEW_TASK);
    // use the startActivity function to redirect to the wallet app
    startActivity(intent);
} catch (Exception e) {
    e.printStackTrace();
}

Step 4: Obtain the authorized payment result Server-side

1. Set the webhook URL to receive notifications

You can choose one of following methods to set the webhook URL to receive notifications:

• If each of your order has a unique notification URL, we recommend to set the webhook URL in each individual request. You can pass the asynchronous notification receiving URL for the specific order through the paymentNotifyUrl parameter in the pay API.
• If all your orders share a unified notification URL, you can set the webhook URL on APO Dashboard through Developer > Notification Address.

Note:

• If you set the webhook URL both in the API and APO Dashboard, the one set in the pay API takes precedence.
• If the buyer fails to verify their identity after being redirected to the 3D URL, APO will only send an asynchronous notification after the order is closed. The default payment expiration time depends on the acquirer.

The following is the notification request sample code:

{
  "acquirerReferenceNo":"pay_6tmvamfcxp5ujbbfjeopyz****",
  "result":{
    "resultStatus":"S",
    "resultCode":"SUCCESS",
    "resultMessage":"success."
  },
  "notifyType":"PAYMENT_RESULT",
  "paymentId":"2025031719401089010011160025568****",
  "paymentRequestId":"G15320250317102252****",
  "paymentResultInfo":{
    "lastFour":"1358",
    "funding":"CREDIT",
    "issuerName":"ORIENT CORPORATION",
    "expiryMonth":"**",
    "threeDSResult":{
      "cavv":"",
      "xid":"649335d6-1858-4532-8a6e-0579e1b7****",
      "threeDSType":"INTERNAL",
      "eci":"05",
      "threeDSVersion":"2.2.0"
    },
    "expiryYear":"**",
    "cardNo":"************1358",
    "cardBin":"4280**",
    "holdName":"NIHEI SHUNSUKE",
    "issuingCountry":"JP",
    "avsResultRaw":"I",
    "fingerprint":"a28f7dd0713e2f1d4e9ccae8853f5c0abca5154a03a6559cd985eb409857****",
    "networkTransactionId":"46507608833****",
    "cardBrand":"VISA",
    "cvvResultRaw":""
  },
  "paymentTime":"2025-03-16T19:27:17-07:00",
  "acquirerInfo":{
    "referenceRequestId":"202503171903130000060027882****",
    "acquirerTransactionId":"pay_6tmvamfcxp5ujbbfjeopyz****",
    "acquirerMerchantId":"pc_6cpbmm5qderubjraxrygje****",
    "acquirerName":"CHECKOUT"
  },
  "paymentAmount":{
    "currency":"JPY",
    "value":"120"
  },
  "paymentCreateTime":"2025-03-16T19:26:42-07:00"
}

The table shows the possible values that the result.resultStatus parameter in the request message may return. Please handle the result according to the guidances:

Common Questions

Q: When will the notification be sent?

A: The sending time depends on whether the payment is completed: if the payment is completed, APO will send an asynchronous notification immediately after receiving notification from the acquirers.

Q: Will the asynchronous notification be re-sent?

A: Yes, the asynchronous notification will be re-sent automatically within 24 hours for the following cases:

• If you didn't receive the asynchronous notification due to network reasons.
• If you receive an asynchronous notification from APO, but you didn't make a response to the notification in the Sample code format.

The notification can be re-sent up to 8 times or until a correct response is received to terminate delivery. The sending intervals are as follows: 0 minutes, 2 minutes, 10 minutes, 10 minutes, 1 hour, 2 hours, 6 hours, and 15 hours.

Q: What are the key parameters in the notification that I need to use?

A: Pay attention to the following key parameters:

• result: indicates the payment result of the order.
• paymentRequestId: indicates the payment request number you generated for consult, cancel, and reconciliation.
• paymentId: indicates the payment order number generated by APO, used for refund and reconciliation.
• paymentAmount: indicates the payment amount. Pass this parameter if payment amount verification is required.
• acquirerInfo: indicates the information about the acquirers.

Q: Do I need to save the information on acquirers?

A: It is recommended to save the information on acquirers (acquirerInfo), refer to Order number management for specific reasons.

2. Verify asynchronous notifications

If you receive an asynchronous notification from APO, you are required to return the response in the Sample code format, but you do not need to countersign the response.

You need to verify the signature of the payment notification sent by APO.

import javax.servlet.http.HttpServletRequest;

import org.springframework.http.ResponseEntity;
import org.springframework.web.bind.annotation.PostMapping;
import org.springframework.web.bind.annotation.RequestBody;
import org.springframework.web.bind.annotation.RestController;

import com.alipay.global.api.model.Result;
import com.alipay.global.api.model.ResultStatusType;
import com.alipay.global.api.response.AlipayResponse;
import com.alipay.global.api.tools.WebhookTool;

@RestController
public class PaymentNotifyHandleBySDK {

    /**
     * alipay public key, used to verify signature
     */
    private static final String SERVER_PUBLIC_KEY = "";

    /**
     * payment result notify processor
     * using <a href="https://spring.io">Spring Framework</a>
     *
     * @param request    HttpServletRequest
     * @param notifyBody notify body
     * @return
     */
    @PostMapping("/payNotify")
    public Object payNotifyHandler(HttpServletRequest request, @RequestBody String notifyBody) {

        // retrieve the required parameters from http request.
        String requestUri = request.getRequestURI();
        String requestMethod = request.getMethod();

        // retrieve the required parameters from request header.
        String requestTime = request.getHeader("request-time");
        String clientId = request.getHeader("client-id");
        String signature = request.getHeader("signature");

        Result result;
        AlipayResponse response = new AlipayResponse();

        try {
            // verify the signature of notification
            boolean verifyResult = WebhookTool.checkSignature(requestUri, requestMethod, clientId, requestTime, signature, notifyBody, SERVER_PUBLIC_KEY);
            if (!verifyResult) {
                throw new RuntimeException("Invalid notify signature");
            }

            // deserialize the notification body

            // update the order status with notify result

            // respond the server that the notification is received
            result = new Result("SUCCESS", "success", ResultStatusType.S);

        } catch (Exception e) {
            String errorMsg = e.getMessage();
            // handle error condition
            result = new Result("ERROR", errorMsg, ResultStatusType.F);
        }
        response.setResult(result);
        return ResponseEntity.ok().body(response);
    }

}

You do not need to countersign the response of the result notification. However, you must respond to each notification request in the following fixed format, regardless of whether the payment is successful or not.

{
    "result": {
        "resultCode": "SUCCESS",
        "resultStatus": "S",
        "resultMessage": "success"
    }
}

Step 5: Capture and obtain the capture result

You can configure the paymentFactor.captureMode parameter in the pay API to opt for automatic capture or manual capture. You can obtain the capture result through an asynchronous notification or inquire about the capture result by calling the inquiryPayment API. For more information, see Capture.

It is recommended to save the information of the acquirers (acquirerInfo), refer to Order number management for specific reasons. The following code shows an example of a capture result response when inquiring about the capture result:

{
  "paymentResultCode":"SUCCESS",
  "paymentRequestId":"G15320250317102252****",
  "paymentResultInfo":{
    "lastFour":"1358",
    "funding":"CREDIT",
    "issuerName":"ORIENT CORPORATION",
    "expiryMonth":"**",
    "threeDSResult":{
      "cavv":"",
      "xid":"649335d6-1858-4532-8a6e-0579e1b7****",
      "threeDSType":"INTERNAL",
      "eci":"05",
      "threeDSVersion":"2.2.0"
    },
    "expiryYear":"**",
    "cardNo":"************1358",
    "cardBin":"428067",
    "holdName":"NIHEI SHUNSUKE",
    "issuingCountry":"JP",
    "avsResultRaw":"I",
    "fingerprint":"a28f7dd0713e2f1d4e9ccae8853f5c0abca5154a03a6559cd985eb409857****",
    "networkTransactionId":"46507608833****",
    "cardBrand":"VISA",
    "cvvResultRaw":""
  },
  "transactions":[
    {
      "transactionType":"CAPTURE",
      "transactionStatus":"SUCCESS",
      "transactionRequestId":"G15320250317102252****",
      "transactionAmount":{
        "currency":"JPY",
        "value":"120"
      },
      "transactionTime":"2025-03-16T19:27:17-07:00",
      "acquirerInfo":{
        "referenceRequestId":"202503171903130100060027884****",
        "acquirerTransactionId":"act_yv3fchmu3bre3l3tui5y35****",
        "acquirerMerchantId":"pc_6cpbmm5qderubjraxrygje****",
        "acquirerName":"CHECKOUT"
      },
      "transactionId":"2025031719401089010011160025567****",
      "transactionResult":{
        "resultStatus":"S",
        "resultCode":"SUCCESS",
        "resultMessage":"success"
      }
    }
  ],
  "paymentAmount":{
    "currency":"JPY",
    "value":"120"
  },
  "acquirerReferenceNo":"pay_6tmvamfcxp5ujbbfjeopyz****",
  "result":{
    "resultStatus":"S",
    "resultCode":"SUCCESS",
    "resultMessage":"success."
  },
  "paymentId":"2025031719401089010011160025568****",
  "paymentResultMessage":"success.",
  "paymentTime":"2025-03-16T19:27:17-07:00",
  "acquirerInfo":{
    "referenceRequestId":"202503171903130000060027882****",
    "acquirerTransactionId":"pay_6tmvamfcxp5ujbbfjeopyz****",
    "acquirerMerchantId":"pc_6cpbmm5qderubjraxrygje****",
    "acquirerName":"CHECKOUT"
  },
  "paymentStatus":"SUCCESS",
  "paymentCreateTime":"2025-03-16T19:26:42-07:00"
}

After payment

Inquire about the authorized payment result

In addition to obtaining the buyer's payment result through the asynchronous notification, you can retrieve the corresponding payment result through the payments inquiry service. You can call the inquiryPayment API and use the paymentRequestId value of the payment to check the payment status.

The following code shows how to call the inquiryPayment API:

public static void inquiryPayment() {
    AlipayPayQueryRequest alipayPayQueryRequest = new AlipayPayQueryRequest();

    // replace with your paymentRequestId
    alipayPayQueryRequest.setPaymentRequestId("yourPaymentRequestId");

    AlipayPayQueryResponse alipayPayQueryResponse = null;
    try {
        alipayPayQueryResponse = CLIENT.execute(alipayPayQueryRequest);
    } catch (AlipayApiException e) {
        String errorMsg = e.getMessage();
        // handle error condition
    }
}

The following code shows an example of a request:

{
    "paymentRequestId": "REQUEST_2024100821261****"
}

It is recommended to save the information on acquirers (acquirerInfo), refer to Order number management for specific reasons. The following code shows an example of a response:

{
  "paymentResultCode": "SUCCESS",
  "paymentRequestId": "G15320250317102252****",
  "paymentResultInfo": {
    "lastFour": "1358",
    "funding": "CREDIT",
    "issuerName": "ORIENT CORPORATION",
    "expiryMonth": "**",
    "threeDSResult": {
      "cavv": "",
      "xid": "649335d6-1858-4532-8a6e-0579e1b7****",
      "threeDSType": "INTERNAL",
      "eci": "05",
      "threeDSVersion": "2.2.0"
    },
    "expiryYear": "**",
    "cardNo": "************1358",
    "cardBin": "428067",
    "holdName": "NIHEI SHUNSUKE",
    "issuingCountry": "JP",
    "avsResultRaw": "I",
    "fingerprint": "a28f7dd0713e2f1d4e9ccae8853f5c0abca5154a03a6559cd985eb409857****",
    "networkTransactionId": "46507608833****",
    "cardBrand": "VISA",
    "cvvResultRaw": ""
  },
  "paymentAmount": {
    "currency": "JPY",
    "value": "120"
  },
  "acquirerReferenceNo": "pay_6tmvamfcxp5ujbbfjeopyz****",
  "result": {
    "resultStatus": "S",
    "resultCode": "SUCCESS",
    "resultMessage": "success."
  },
  "paymentId": "2025031719401089010011160025568****",
  "paymentResultMessage": "success.",
  "paymentTime": "2025-03-16T19:27:17-07:00",
  "acquirerInfo": {
    "referenceRequestId": "202503171903130000060027882****",
    "acquirerTransactionId": "pay_6tmvamfcxp5ujbbfjeopyz****",
    "acquirerMerchantId": "pc_6cpbmm5qderubjraxrygje****",
    "acquirerName": "CHECKOUT"
  },
  "paymentStatus": "SUCCESS",
  "paymentCreateTime": "2025-03-16T19:26:42-07:00"
}

{
  "acquirerInfo": {
    "acquirerMerchantId": "2188120229218367",
    "acquirerName": "ALIPAY",
    "acquirerResultCode": "SUCCESS",
    "acquirerResultMessage": "success",
    "acquirerTransactionId": "20250724194010800100188730206132981",
    "referenceRequestId": "PAY_10040954202507241753320589210"
  },
  "authExpiryTime": "2025-07-30T18:29:57-07:00",
  "paymentAmount": {
    "currency": "SGD",
    "value": "1"
  },
  "paymentId": "20250724194010800100188730206132981",
  "paymentMethodType": "CARD",
  "paymentRedirectUrl": "https://ac.alipay.com/page/antom-web-checkout/src/component-app/threedPage/index.html?scene=callbackPage",
  "paymentRequestId": "PAY_10040954202507241753320589210",
  "paymentResultCode": "SUCCESS",
  "paymentResultInfo": {
    "avsResultRaw": "I",
    "cardBrand": "VISA",
    "cardCategory": "CONSUMER",
    "cardNo": "************6338",
    "credentialTypeUsed": "PAN",
    "cvvResultRaw": "P",
    "funding": "DEBIT",
    "issuingCountry": "HK",
    "networkTransactionId": "385205053951842",
    "paymentMethodRegion": "GLOBAL",
    "threeDSResult": {
      "cavv": "",
      "challengeCancel": "",
      "eci": "",
      "threeDSOffered": false,
      "threeDStransactionStatusReason": ""
    }
  },
  "paymentResultMessage": "success.",
  "paymentStatus": "SUCCESS",
  "paymentTime": "2025-07-23T18:29:57-07:00",
  "result": {
    "resultCode": "SUCCESS",
    "resultMessage": "success.",
    "resultStatus": "S"
  }
}

The table shows the possible values of paymentStatus returned in the response. Please handle the result according to the guidances:

Common Questions

Q: How often should I call the inquiryPayment API?

A: Please continuously call the inquiryPayment API at 2-second intervals, and make the inquiry after placing the order via the pay API until the final payment result is obtained or the payment result asynchronous notification is received.

Q: What are the key parameters in the inquiry that I need to use?

A: Pay attention to the following key parameters:

• paymentStatus: You need to determine the payment result based on paymentStatus.
• paymentAmount: indicates the payment amount.

Cancel Server-side

If you need to cancel a transaction, you can use the cancel API. For more information, see Cancel.

Refund Server-side

To learn about APO refund rules and how to initiate a refund for a successful transaction, see Refund for more information.

Dispute

When a buyer chooses to pay with a card, a dispute may occur. To learn more, see Dispute.

Reconciliation

After the transaction is completed, use the financial reports provided by APO for reconciliation. For more information on how to reconcile and the settlement rules of APO, please refer to Reconciliation.
